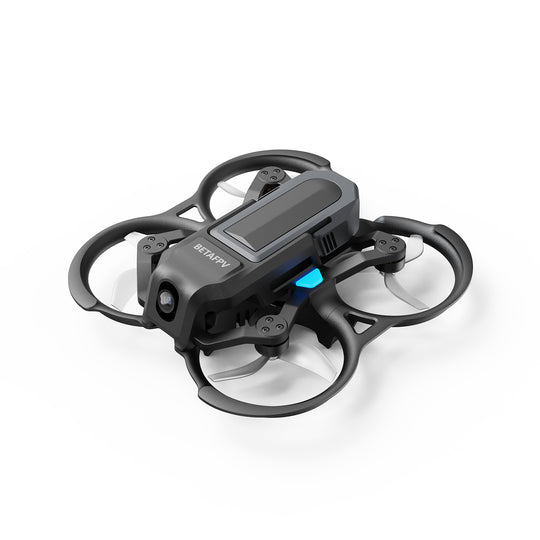

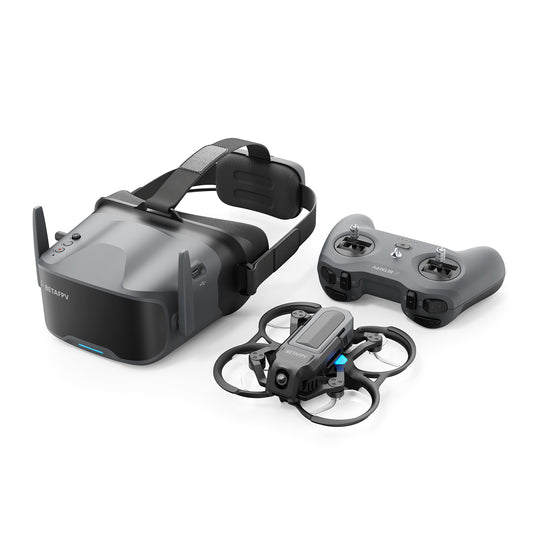

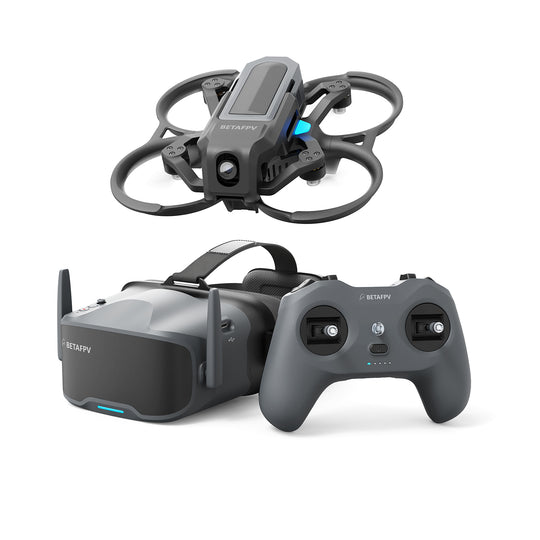

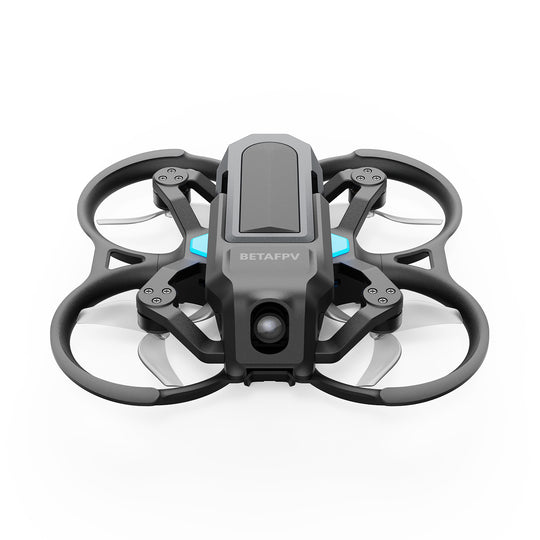

BETAFPV Aquila20 HD FPV Drone

Unlock immersive aerial adventures with the BETAFPV Aquila20 HD FPV Kit. Experience stunning full HD digital imaging, enhanced 2S propulsion, and up to 10 minutes of flight. Perfect for all skill levels, this all-in-one kit includes FPV goggles and radio transmitter—fly with unmatched clarity and control!

Bullet Points

• Your Complete HD FPV Kit, Ready to Fly: Everything you need is included—drone, HD goggles, and remote control. Go from unboxing to immersive flight in minutes.
• P1 HD VTX: Delivers 1080p@60fps buttery-smooth video with approximately 60ms latency and a robust 400m range.
• Powerful & Agile Performance: A smooth and powerful 2S propulsion system gives you confident control for an exciting flight experience.
• Extended 10-Minute Flight: Enjoy more time in the air to practice and explore, thanks to a smart battery that maximizes your fun.
• Learn with Confidence, Fly like a Pro: Master the skies with beginner-safe modes like Stable Hover and Auto-Flip, then advance to full manual control.
• Record Your Flights Instantly: The VR04 features a glasses-friendly design and let you capture smooth HD footage directly to your goggles with the press of a button.
• Built to Survive Crashes: A tough, resilient frame takes the worry out of learning, protecting your drone through bumps and falls.

Specifications

• Item: Aquila20 HD FPV Kit (P1 HD VTX)
• Goggles: VR04 HD FPV Goggles
• Radio Transmitter: LiteRadio 4 SE Radio Transmitter
• Video Transmission Power and Range: 200mW and range above 400m
• Remote Controller Protocol: ExpressLRS 2.4G V3
• Camera Angle Adjustment: 10°-30°
• CMOS: 1/2.9"
• FOV: 170°
• Flight Controller: Aquila20 V1.0
• Propellers: Gemfan 2218 3-Blade Propellers
• Motors: 1103|10500KV motors
• Battery: Aquila20 Exclusive Battery 2S HV 1100mAh
• Charger: 2S HV Battery Charger and Voltage Tester with BT3.0 Connector
• Wheelbase: 100mm
• Frame Material: PA
• Flight Modes: N/S/M Mode
• Flight Time: About 10 mins

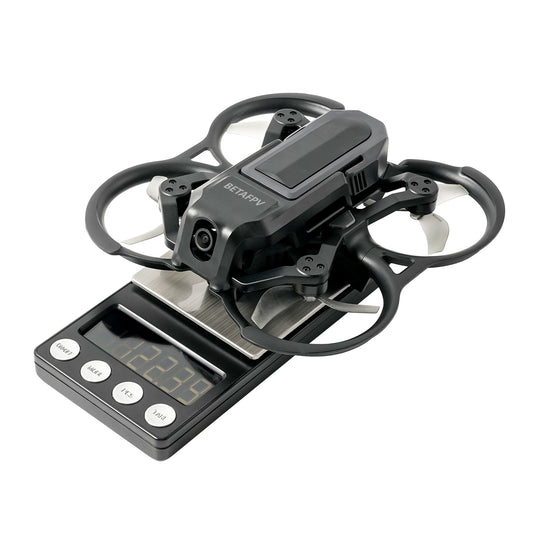

• Takeoff Weight: 122g

Immersive Digital HD Experience

Enter a new era of FPV with the Aquila20 HD's revolutionary digital system. Experience the generational leap from analog to crystal-clear digital, where every detail appears in stunning 1080p resolution at 60fps.

ArtLynk System is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. It enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.

• Artosyn Inside & KAP Supported: ArtLynk system uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
• Collaborative and Open Community: ArtLynk system is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk system, ensuring broad compatibility and fostering community.

Equipped with a 1/2.9” CMOS sensor and a wide 170° field of view,  the camera captures vibrant, detailed footage in varied lighting and supports 1080P recording. This expanded perspective gives you greater situational awareness, making every flight more immersive and responsive. See more of the world below with clarity that matches the high‑definition transmission—so you can fly confidently, spot details effortlessly, and capture stunning aerial views.

Learn with Confidence, Fly like a Pro

The Aquila20 HD is designed to grow with you. Powered by the self-developed flight controller, it features three distinct flight modes (N/S/M) that allow you to start with absolute stability and gradually unlock full acrobatic freedom as your skills develop.

Altitude Hold & Stable Hover (N Mode): Your confidence-building mode. A highly precise barometer allows the drone to lock its altitude and hover steadily in place automatically. It's the perfect safety net for taking your hands off the remote control, learning orientation, and ensuring a safe landing in emergencies.

Pro Modes (S & M Modes): For when you're ready to advance. S and M Modes disable all assists, giving experienced pilots complete, unfiltered control for flips, rolls, and precision maneuvering.

Turtle Mode: With this mode, if you flip over, a simple command on your remote control instructs the motors to flip the drone back onto its feet, so you can take off again instantly—no walking over to manually retrieve it.

Aquila20: Start Safe, Fly Longer

10-Minute Flight & Powerful 2S Propulsion

Experience the perfect balance of endurance and performance. Our refined 2S propulsion system delivers both agile power and extended 10-minute flights, giving you more time to master every maneuver. The innovative inverted duct design enhances thrust and provides exceptional flight stability, while maintaining perfectly manageable control for beginners. Fly longer with confidence - this combination of power and efficiency makes learning smoother and more rewarding than ever.

Built to Survive Crashes

Engineered for resilience, the Aquila20 HD features a PA410 frame specifically designed to absorb and dissipate impact energy, drastically reducing the risk of damage from crashes. The integrated design provides superior protection for the camera and vital internal components, ensuring your whoop stays in the air. This isn’t just a drone—it’s built to survive, so you can learn, experiment, and fly with confidence.

Smart Power, Smarter Flights

Powered by the advanced Smart Battery, the Aquila20 HD delivers optimized performance with built-in intelligence. Its integrated management chip ensures efficient power delivery and automatic protection, while clear LED indicators and low-power alerts keep you informed throughout your flight. Fly longer and land safer with total control!

VR04 HD FPV Goggles

Designed for total immersion and comfort, the VR04 HD goggles feature a glasses-friendly design with ample space, so you never have to remove your eyewear. Enhanced with contoured face padding and a soft rubber nose bridge, they block outside light effectively while fitting securely for longer, more focused sessions. The 2600mAh batteries provide up to 3 hours of standby time, while one-button recording lets you effortlessly capture HD footage directly to a microSD card. Relive your flights in crystal-clear detail—every moment preserved with professional quality.

LiteRadio 4 SE Radio Transmitter

The included LiteRadio 4 SE Radio Transmitter offers 8-channel operation in an ultra-portable package perfect for new pilots, delivering razor-sharp control when you're flying drones. Its advanced-coated gimbal delivers silky-smooth, durable operation, paired with Bluetooth wireless modes for seamless simulator training across PCs, tablets, and mobile devices. Built for endurance, the 1S 2000mAh battery powers 8+ hours (at 25mW) of flight or practice and recharges fully in 40 minutes via 15W fast charging.

RTF FPV Series

From the Cetus Lite since 2021 to the new Aquila20 HD FPV Kit, BETAFPV continually refines its Ready-to-Fly FPV kits to serve pilots at every stage. With innovation focused on performance, durability, and ease of use, our series delivers top-tier options tailored for beginners and professionals alike—ensuring everyone can experience the thrill of flight with confidence and control.

Aquila20 HD vs. Aquila20 Analog

Recommended Parts

• Battery: Aquila20 Exclusive Battery (2PCS)

File

• User Manual and Quick Start Guide for Aquila20 HD FPV Kit
• Firmware for Aquila20 HD FPV Kit

Package

• 1 * Aquila20 HD Brushless Whoop Quadcopter
• 1 * LiteRadio 4 SE Radio Transmitter
• 1 * VR04 HD FPV Goggles
• 2 * Aquila20 Exclusive Battery 2S HV 1100mAh
• 2 * 18650 2600mAh Battery*
• 1 * 2S HV Battery Charger and Voltage Tester with BT3.0 Connector
• 1 * Gemfan 2218 3-Blade Propellers (4PCS)
• 1 * USB-C Cable
• 1 * Prop Removal Tool
• 1 * Cross Screwdriver
• 1 * 4Pin Adapter Cable
• 1 * USB Type-C Adapter Board
• 1 * Portable Storage Bag
• 1 * User Manual
