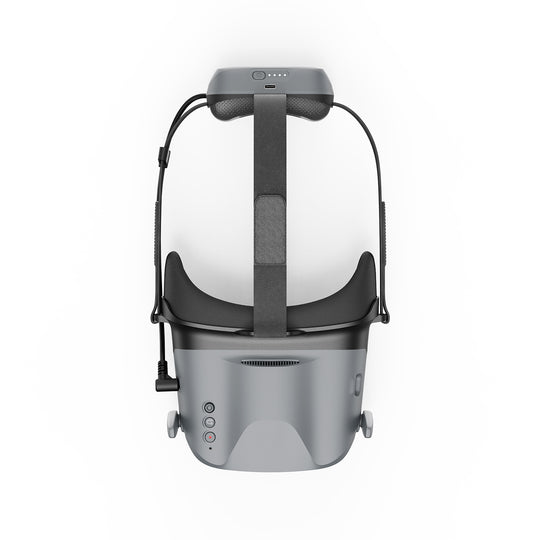

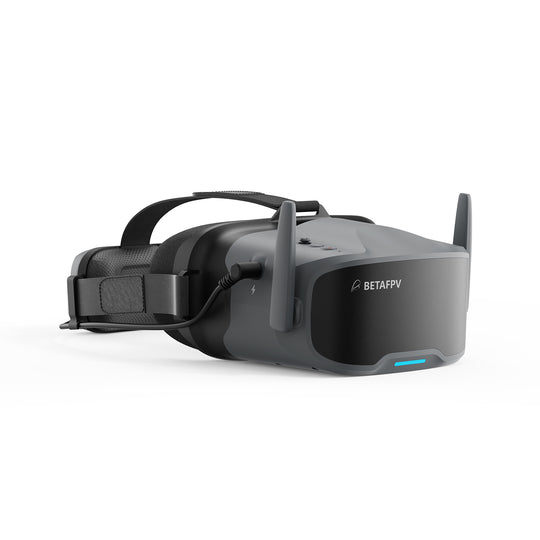

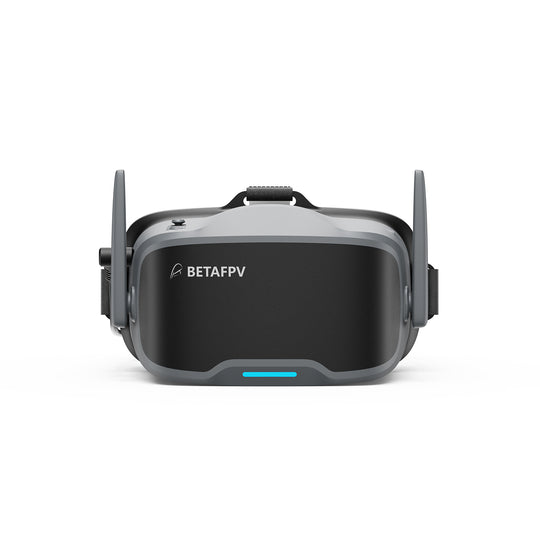

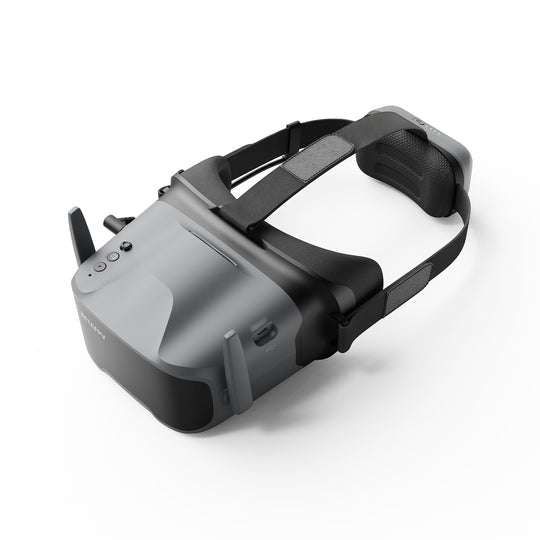

BETAFPV VR04 HD FPV Goggles

Designed for total immersion and comfort, the VR04 HD FPV Goggles feature a glasses-friendly design with ample space, so you never have to remove your eyewear. Enhanced with contoured face padding and a soft rubber nose bridge, they block outside light effectively while fitting securely for longer, more focused sessions. The 2600mAh battery provides up to 3 hours of standby time, while one-button recording lets you effortlessly capture smooth HD footage directly to a microSD card—effortlessly saving and reliving your best flights in crisp detail. Compatible with the P1 Air Unit, VR04 HD gives you the flexibility to build your own setup or fly bind-and-fly models.

Bullet Points

• Glasses-Friendly Fit: Spacious interior lets you wear your glasses comfortably while flying.

• Full Light-Blocking Design: Contoured face padding and a soft nose bridge seal out glare for total immersion.

• P1 Air Unit Compatibility: Bulid your own whoops with P1 Air Unit or bind and fly with P1-supported models.

• Long-lasting 2600mAh Battery: Supports up to 3 hours of continuous use and can be conveniently powered by any 2–6S whoop batteries.

• One-Button Recording: Instantly capture smooth HD footage directly to the goggles with a single press.

Specifications

• Size: 168.8x182.1x98.5mm

• Weight: 400g±10g (battery excluded)

• Display Screen: LCD

• Screen Size: 4.5 inch

• Screen Resolution: 1920*1080

• Transmission Range: >400m

• Bitrate: Max 25Mbps

• Battery: 2600mAh

• Runtime: About 3 hours in normal mode

• Charging Port: Type-C

• Card Slot: MicroSD card (Not included), Supports FAT32 system, maximum 1T storage

• Recording Resolution: 1080P@60fps

Diagram

Total Immersion & Comfort

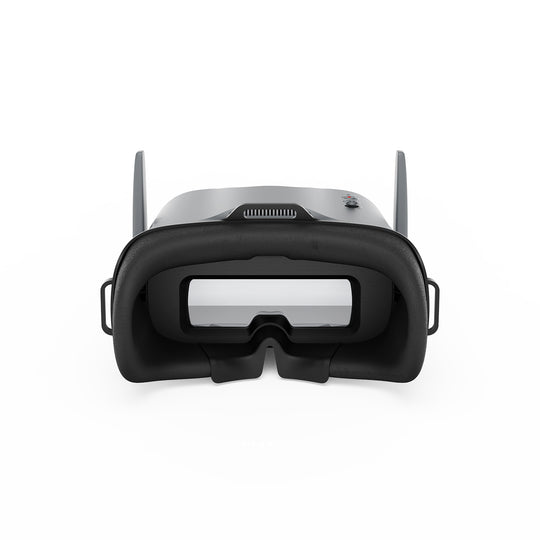

The VR04 HD FPV Goggles are designed for extended-wear comfort, featuring a glasses-friendly interior that accommodates most eyewear. Premium PU face padding ensures a secure, comfortable fit, while a soft silicone nose bridge seals out external light to deliver a fully immersive flight experience.

Power Flexibility

Equipped with two 2600mAh batteries, the VR04 HD supports up to 3 hours of use on a single charge. For added flexibility, it can also be powered directly by any 2‑6S whoop battery—ideal for extended sessions or quick-swap setups.

Record & Replay

The VR04 HD delivers stunning clarity with a 1920×1080 screen resolution, bringing your flights to life in vivid detail. It also supports smooth 1080P@60fps recording—simply press the record button to capture HD footage directly to a microSD card with support for up to 1TB of storage. Relive your most thrilling moments anytime, in crisp high definition, with no extra gear required.

How to Record A Video?

• Insert a microSD card (maximum 1T) into the card slot;

• Short press the record button to start recording, a red dot appears;

• To stop the recording, short press the button again.

Wide Compatibility

The VR04 HD goggles are compatible with the P1 Air Unit for custom builds, and are bind-and-fly ready with whoops like the Meteor75 Pro P1—so whether you're building or flying straight out of the box, an immersive HD flight is just a connection away.

Know More About ArtLynk Protocol

The ArtLynk protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.

• Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn's latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).

• Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.

The ArtLynk protocol supports VR04 HD goggles, Aquila20 HD, Meteor75 Pro P1 whoops, and more—letting you customize your own build or simply bind and fly.

File

• User Manual for VR04 HD FPV Goggles

• Firmware for VR04 HD FPV Goggles

Recommended Parts

• Quadcopter: Meteor75 Pro P1, Aquila20 HD FPV Kit

• VTX: P1 Air Unit

Package

• 1 * VR04 HD FPV Goggles

• 1 * Adjustable Headband

• 2 * 18650 2600mAh Battery

• 1 * User Manual
