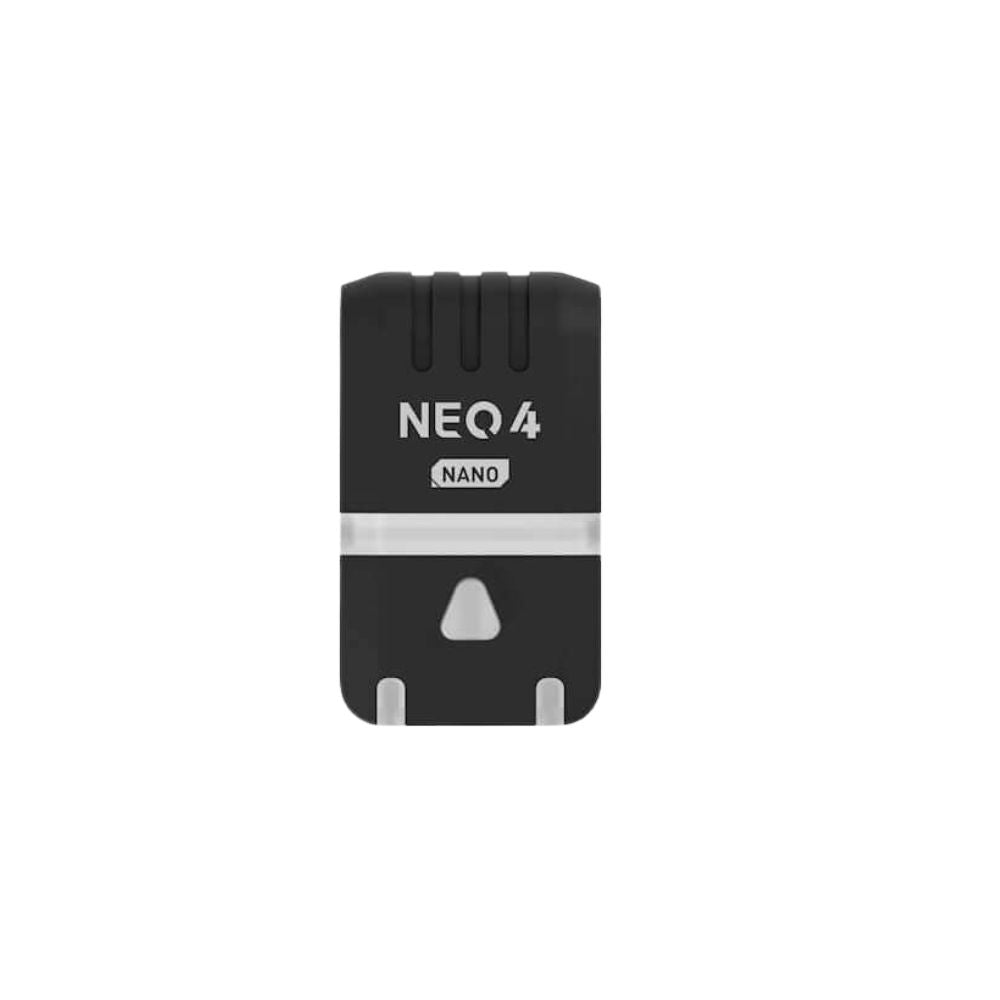

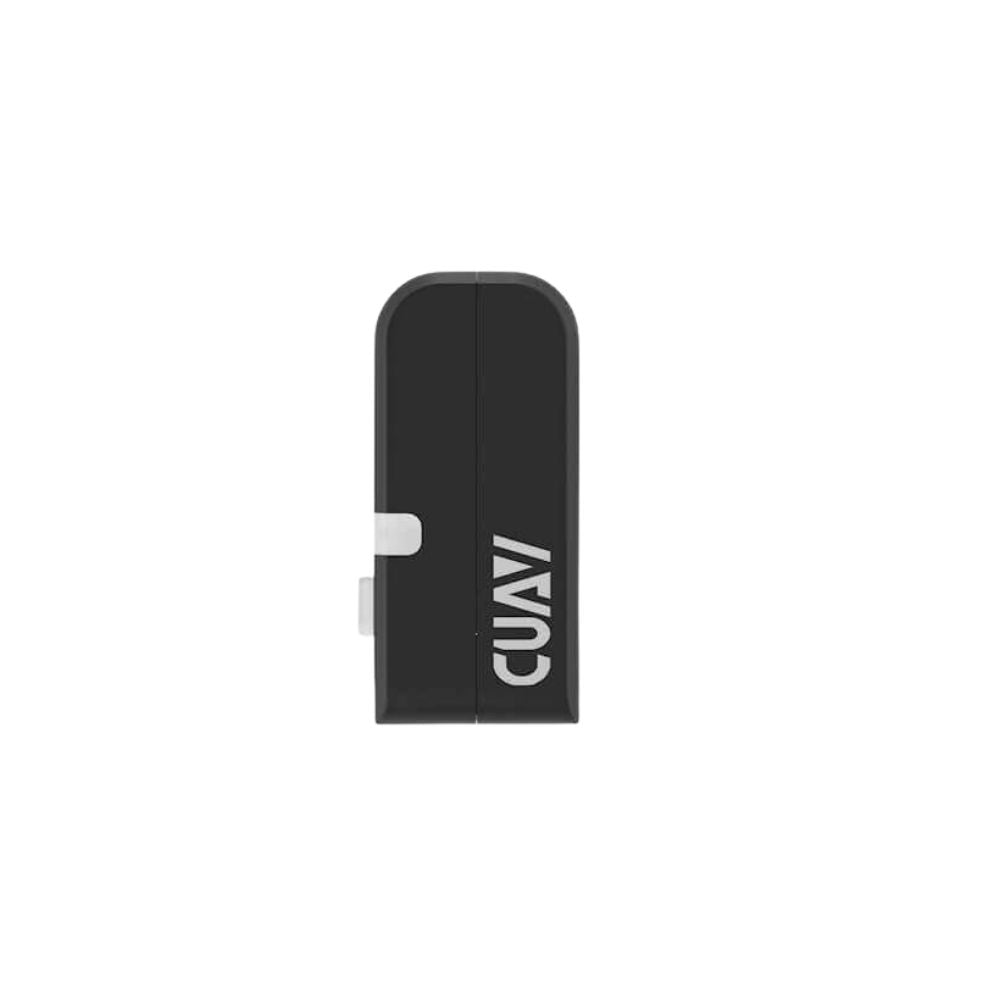

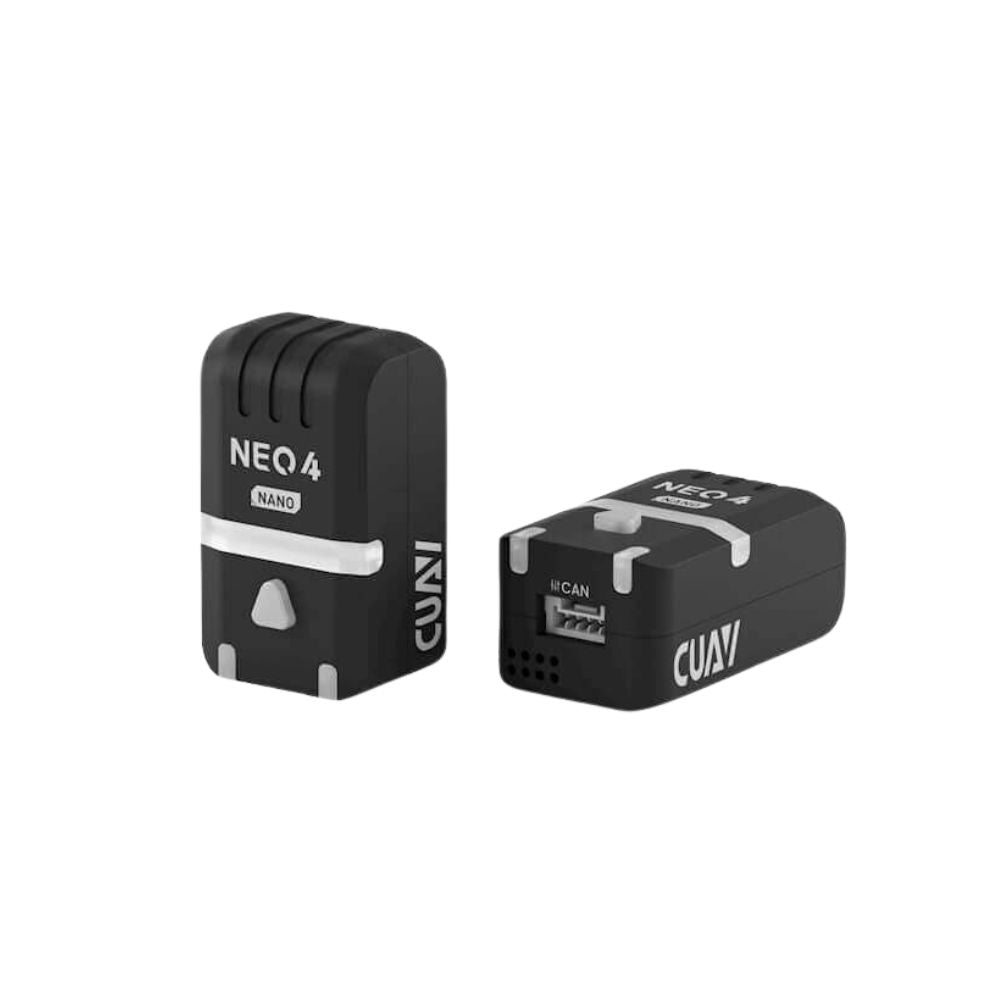

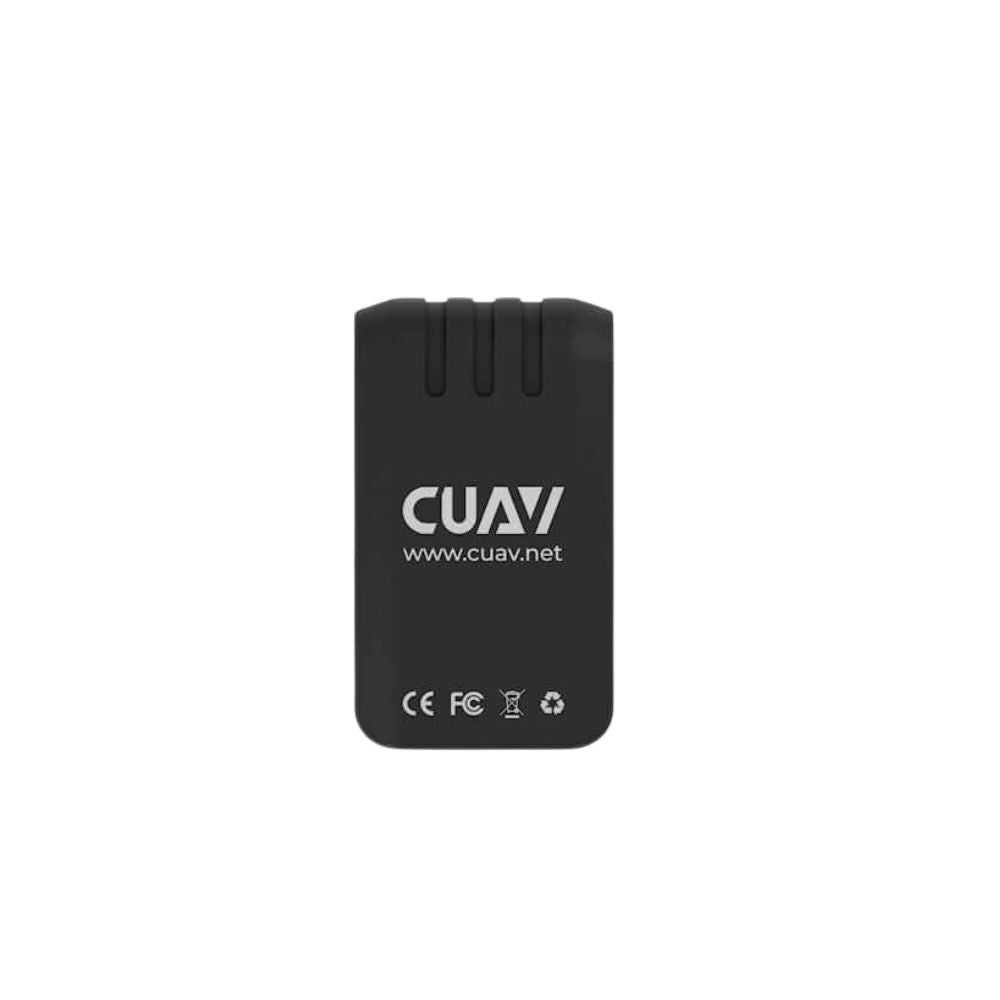

CUAV NEO 4 NANO MINI GNSS MODULE U-BLOX M10 GPS Unmanned Systems
NEO 4 NANO is a micro satellite navigation receiver module. It features a highly integrated miniaturized design,...
- $79.00
- $79.00
- Unit price
- per
Please hurry! Only 0 left in stock
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Free Returns
Learn More.
Description
xNEO 4 NANO is a micro satellite navigation receiver module. It features a highly integrated miniaturized design, integrating the u-blox M10 satellite receiver system and supporting concurrent reception of signals from four major positioning systems. It is equipped with a high-performance STM32H5 processor and an ST IIS2MDC electronic compass. It has precise positioning and excellent anti-interference and environmental adaptability. It supports RGB full-color status indicators, adopts CAN bus protocol, and is widely applicable to various unmanned system devices.
NEO 4 NANO MINI GNSS MODULE Feature:
Compact Size, High Integration
u-blox M10 Satellite Receiver System
High-Performance STM32H5 Processor
Runs on M4C Architecture Software
Built-in ST IIS2MDC Electronic Compass
CAN Bus Communication, Compatible with
ArduPilot and PX4
Basic Parameters：
Receiver Type：u-blox MIA-M10Q
Processor：STM32H5 Arm Cortex-M33 250 MHz
Compass：IIS2MDC
Frequency Band：GPS: L1 C/A / GLONASS: L1OF / BDS: B1I/B1C / Galileo: E1B/C
Augmentation Systems：SBAS: EGNOS, GAGAN, MSAS, WAAS, BDSBAS, KASS, and SouthPAN / QZSS: L1S (SLAS)
Number of Concurrent GNSS：4(BDS, Galileo, GLONASS, GPS)
Oscillators：TCXO
Acquisition：Cold Start: 27 s | Hot Start: 1 s | Aided Start: 1 s
Nav. Update Rate：Up to 10 Hz(4 concurrent GNSS) / Up to 25 Hz (single GNSS)
Horizontal Position Accuracy：1.5 m CEP
Signal Integrity：RF interference and jamming detection and reportingdetection and reporting
Wave Filtering：SAW+LNA+SAW+LNA
Anti Electromagnetic/ Radio Frequency Interference：EMI+RFI
Protocol：DroneCAN
Upgrade Firmware：Support
Firmware：CUAV M4C GNSS
Port Type

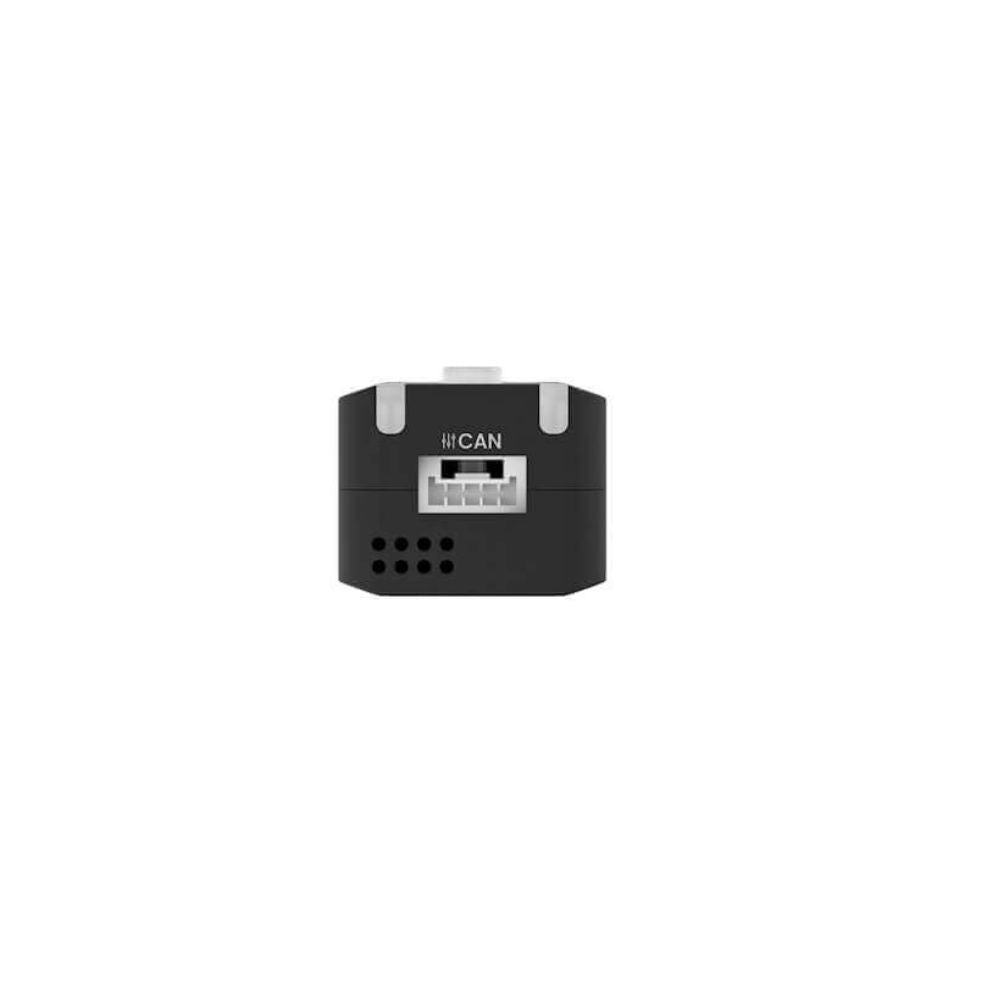

Data Interface：GHR-04V-S
Hardware Parameters
Size：34 * 20 * 14.5 mm
Weight：10.6g
Input Voltage：4.5-5.4V
Operating Temperature：-10 ℃ ~ +80 ℃
NEO 4 NANO Accessory List
NEO 4 NANO x1
CAN Data Cable(Line length: 35cm) x1
3M Double-Sided Tape x1
NEO 4 NANO MINI GNSS MODULE Description:
Compact & Lightweight Highly Integrated, Miniaturized Design
NEO 4 NANO innovatively adopts a highly integrated, miniaturized design with a precise internal structure and a compact overall appearance. Compared with conventional GPS positioning modules, its size is significantly reduced, with a weight of only 10.6 g. The compact body integrates complete positioning functions, easily meeting the strict space requirements of micro unmanned system devices, expanding application possibilities, and ushering in a new era of high-precision positioning.
-72.webp?w=1000&h=1120)
u-blox M10 SystemFour GNSS Concurrent Reception
NEO 4 NANO supports simultaneous reception of signals from four major satellite navigation systems: BeiDou, Galileo, GLONASS, and GPS/QZSS. By intelligently selecting optimal satellite signals, NEO 4 NANO can significantly enhance positioning availability and stability in complex environments such as urban canyons.
-59.webp?w=1000&h=1227)
Powerful Processor Self-Developed M4C Architecture Support
NEO 4 NANO is equipped with an STM32H5 processor, featuring a 250 MHz clock speed and an Arm Cortex-M33 core, which can deliver ample computing power. Combined with CUAV’s self-developed highly flexible M4C architecture software, it enables efficient customized development and upgrading.
-59.webp?w=1000&h=1202)
High Anti-Interference Compass Wide Dynamic Magnetic Field Detection
NEO 4 NANO features a built-in ST LIS2MDC compass, with a magnetic field dynamic detection range of up to 50 Gs and temperature offset compensation. It delivers outstanding performance in high dynamic range and strong magnetic interference resistance among similar products.
-47.webp?w=1000&h=1227)
Accurate and Reliable | Dual SAW+LNA
NEO 4 NANO integrates TCXO and dual-channel LNA architecture, combined with RF filtering technology to build a high-performance active receiving antenna, which provides excellent receiving sensitivity and acquisition time, effectively improves signal quality, and ensures accurate and reliable positioning performance.
-45.webp?w=1000&h=781)
RGB Full-Color Status Indicator Light Controller Unlock Switch
Equipped with an 8-channel bus-controlled RGB light group, NEO 4 NANO is integrated with a built-in buzzer, delivering multi-level status indication effects. Through intelligent scene recognition, it can clearly indicate various working statuses of the controller, including unlock status, battery level, positioning status, and fault information.
-38.webp?w=1000&h=1070)
DroneCAN Communication Protocol Compatible with Mainstream Open-Source Stacks
Adopting the DroneCAN protocol, NE0 4 NANO is fully compatible with mainstream open-source platforms such as ArduPilot and PX4, adapting to various unmanned system devices and having a wide range of application scenarios.
-39.webp?w=1000&h=1099)
