Feature
Supports 2-14S & 200A Cont, 400A Burst
DroneCAN Communication Protocol
Small & Compact Design
Two 5V Output with Independent BEC IC and Circuitry

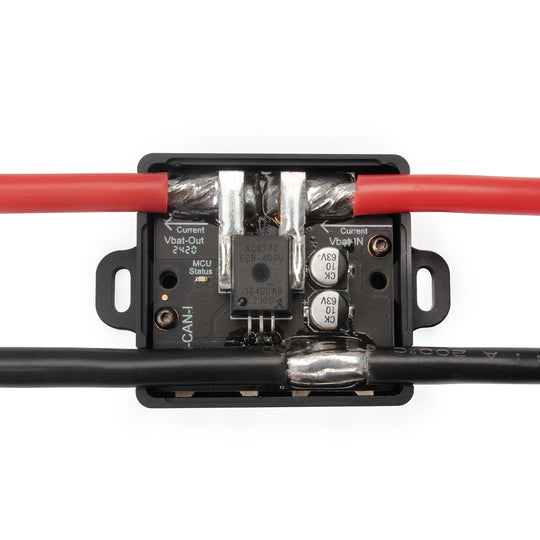

Separated Sensor and BEC Board to Minimize Electrical Noise Interference
Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
High Accuracy Temperature Sensor for Temperature Monitor
High-Efficiency Aluminum Heat Dissipation Shell
Specifications
Processor:STM32F405RG 168MHz 1024KB Flash 196KB RAM
Voltage input: 7~60.9V (2S~14S)
Continuous current:200A
Burst current
400A @ 25℃ 1 sec
1000A @ 25℃ < 1 sec
Max current sensing: 376A
Voltage accuracy: ±0.1V
Current accuracy: ±5%
Temperature accuracy:±1℃

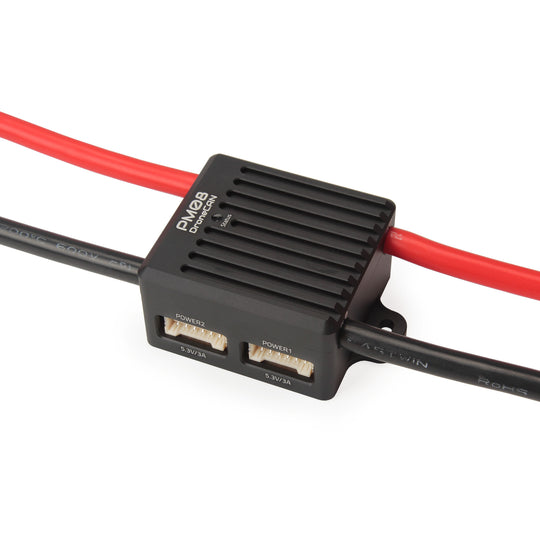

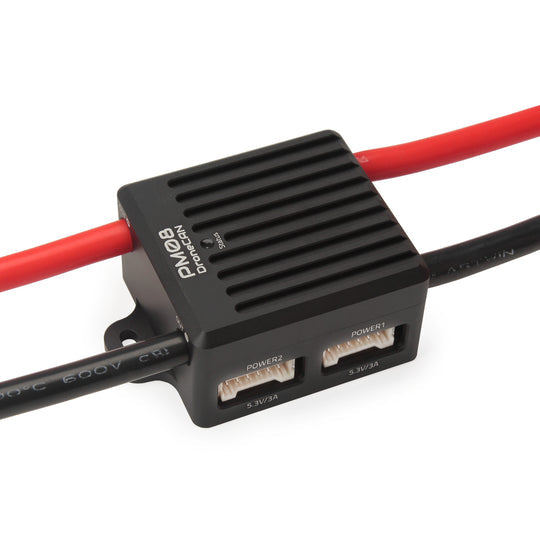

Power port output: 5.3V/3A each port
Protocol: DroneCAN
Operating temperature :-25℃~105℃
Firmware upgrade: Support
Calibration: Support
Pinout

Interface Type
Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
Battery IN/OUT Options:

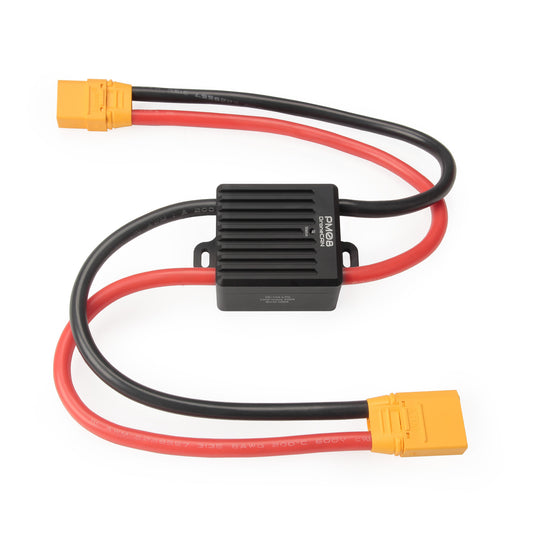

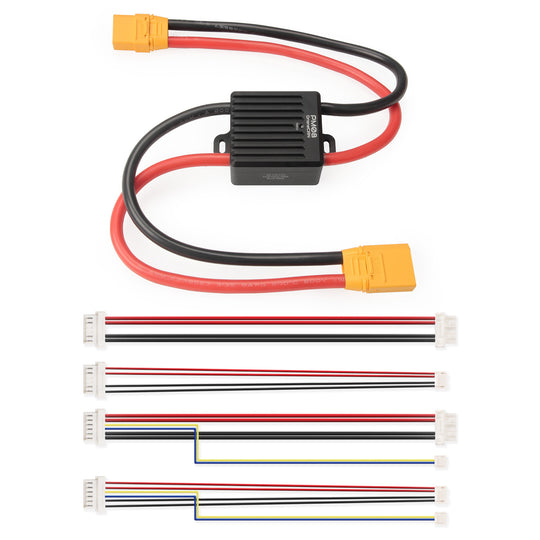

XT90 Connectors

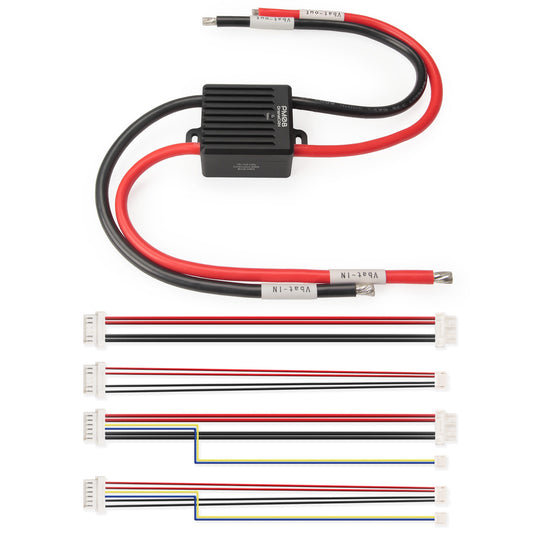

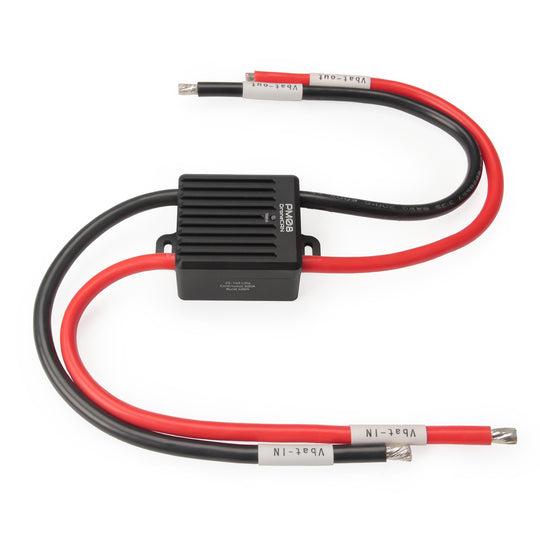

Tinned Wires

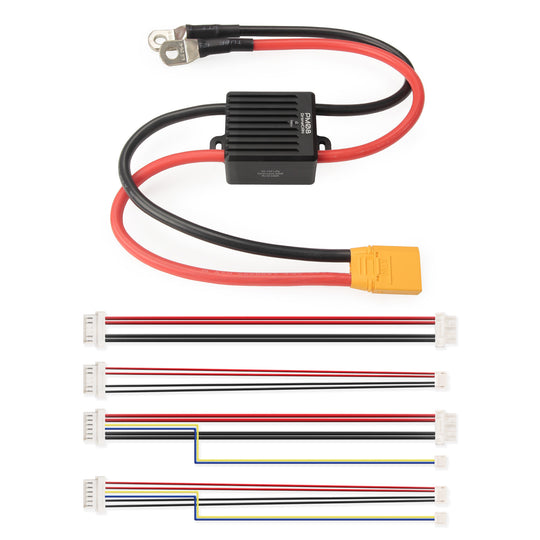

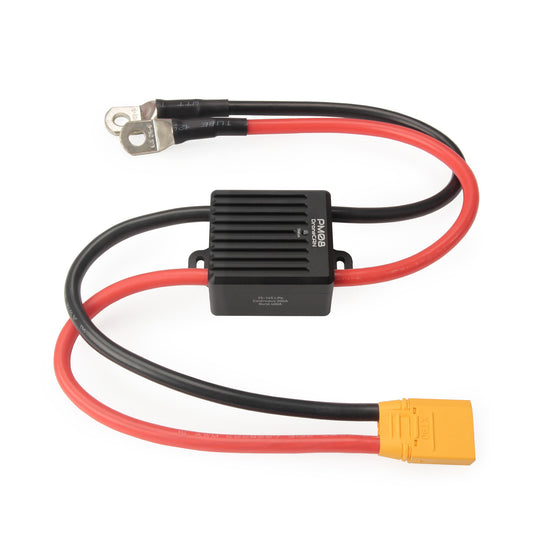

XT90 & Ring Terminals

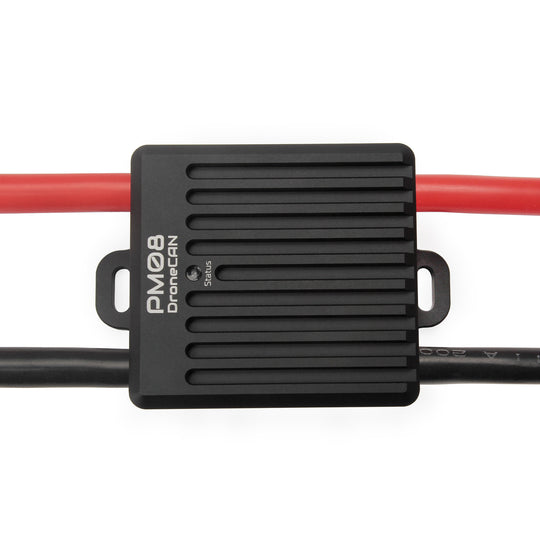

Status LED
Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
Flashing slowly (one-second intervals): CAN is successfully connected
Mechanical Spec
Size: 45mm×41mm×26mm (Not Include Cable)
Weight: 185g (Include Cable)
