Description:

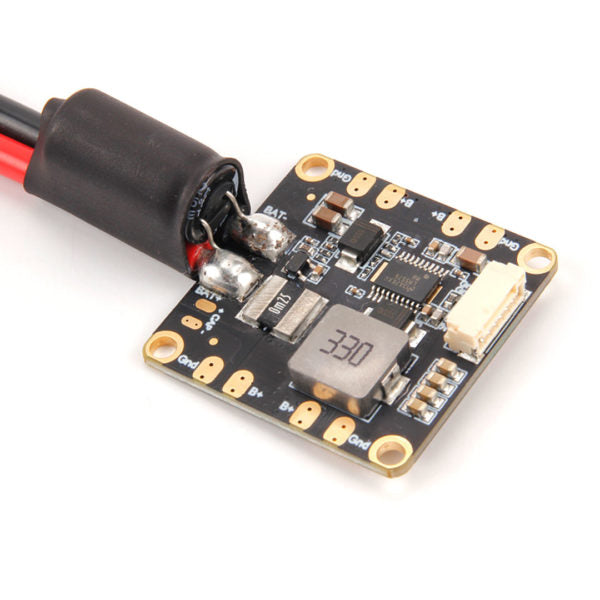

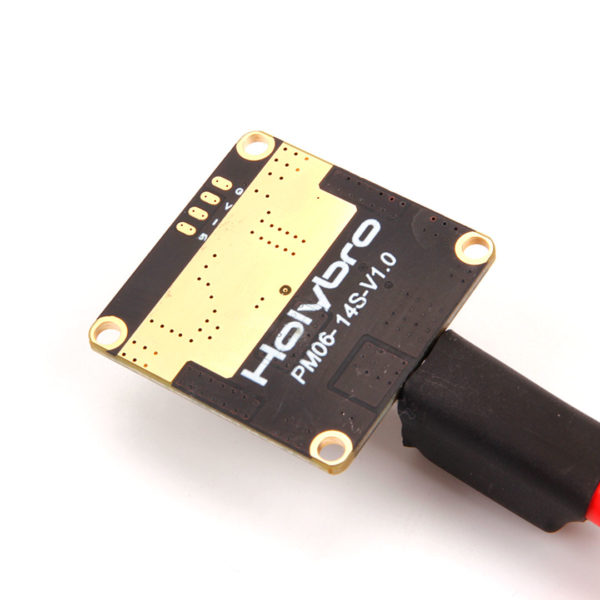

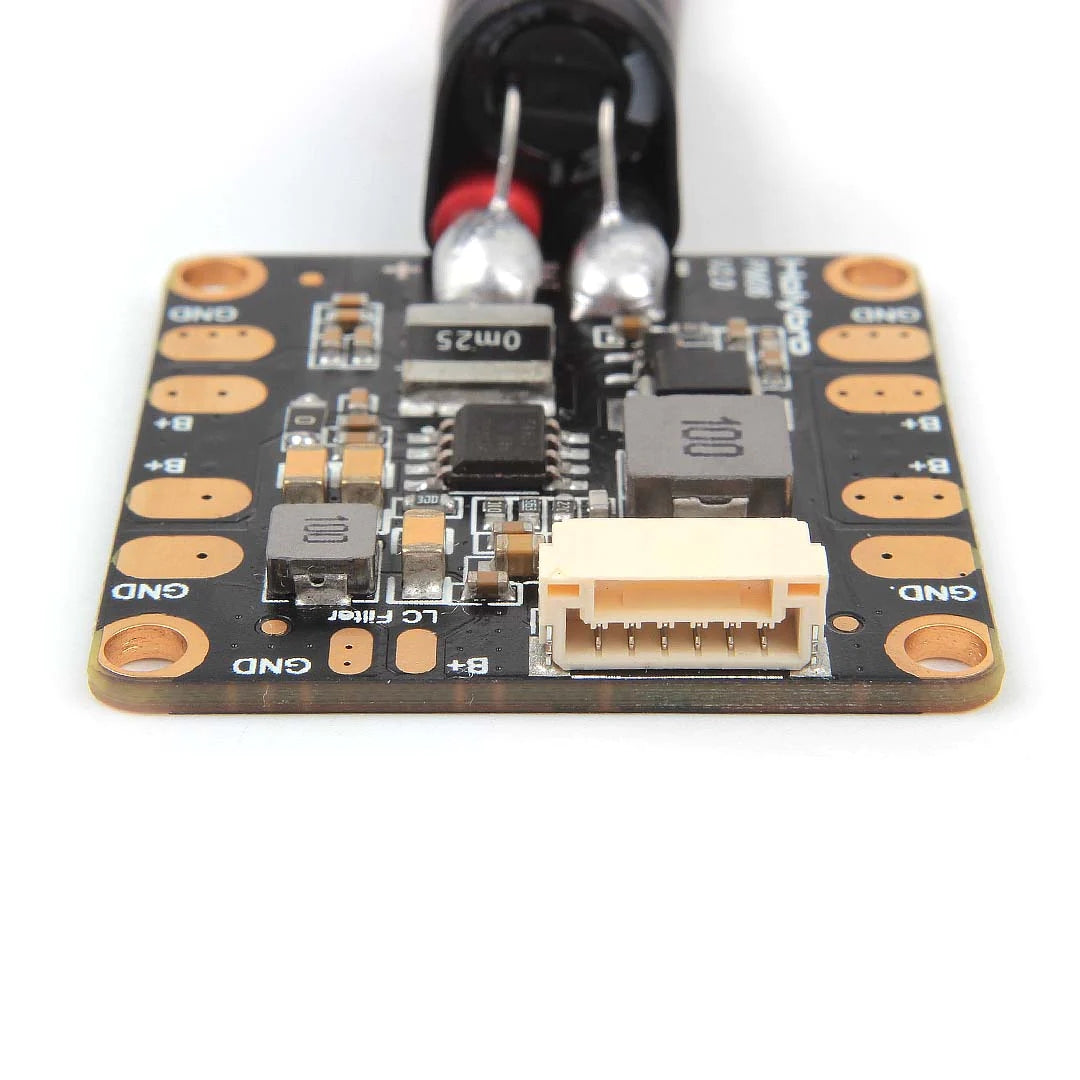

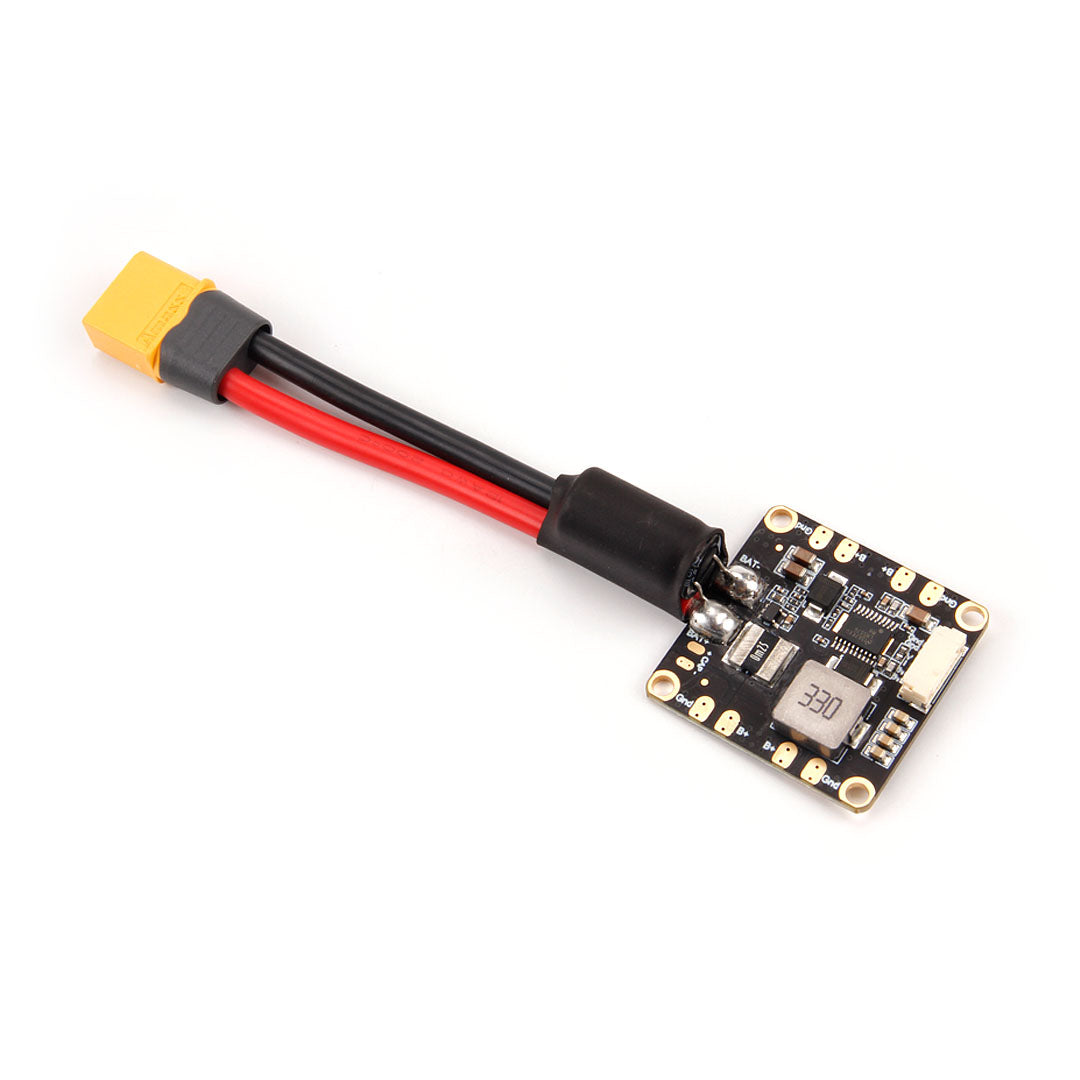

This PM06 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated power distribution for 4 ESCs. It comes with pre-soldered wires, capacitor, and XT60 connector.
Specifications:
Input voltage (14S version): 2S-14S
PCB Cont. Current Rating: 70A
PCB Burst Current Rating: 120A (<60 Sec)
Output: DC 5.2V & 3A Max
Ouput Max Power : 18W
Voltage Divider: 18.182
Amperes per Volt: 36.364
Please Note:
The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).
Mechanical Specification:
Dimensions: 35x35x5mm
Mounting hole: 30.5mm*30.5mm
Weight: 24g

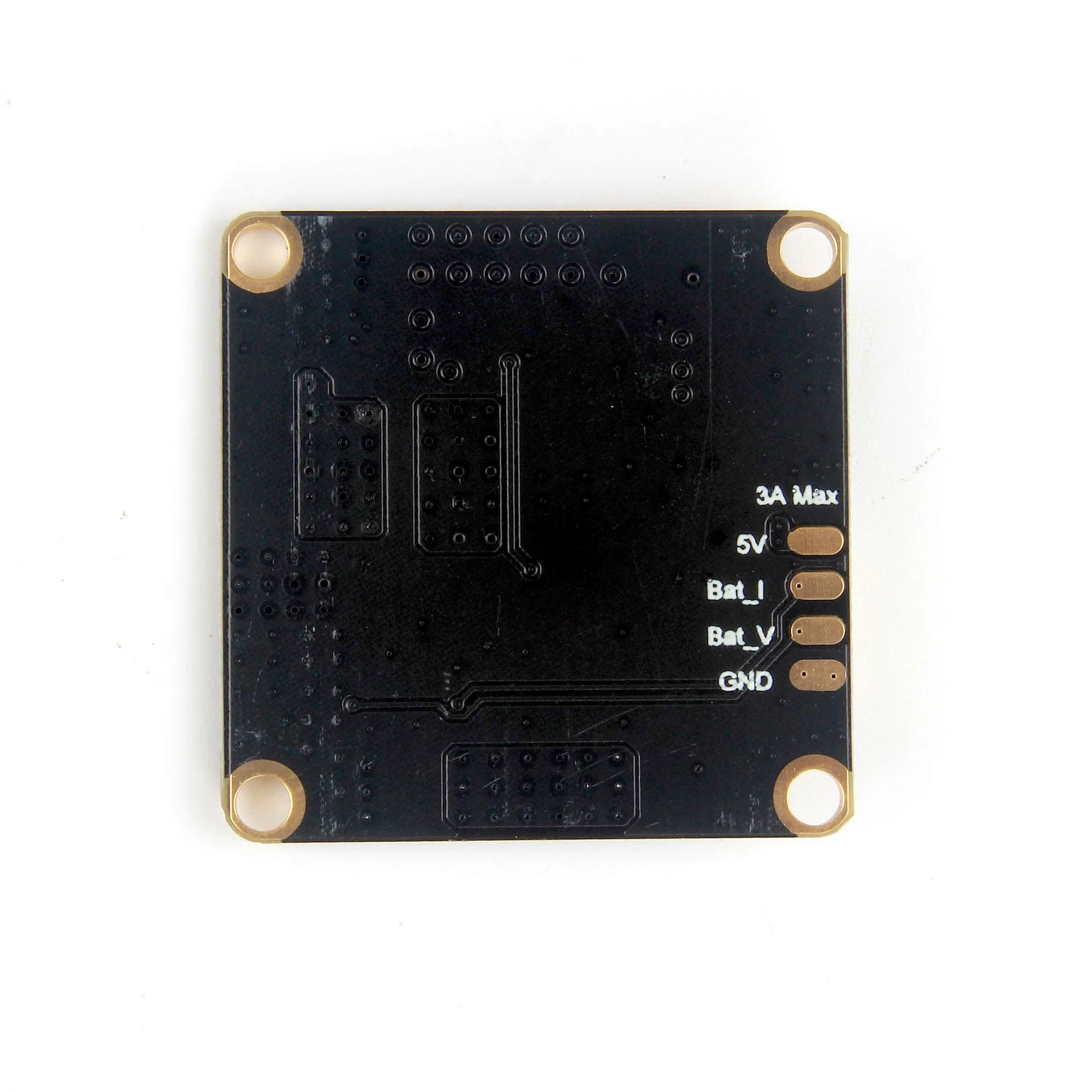

Pin Map:

Setup guide for PX4 & Ardupilot can be found in the Holybro Doc here.

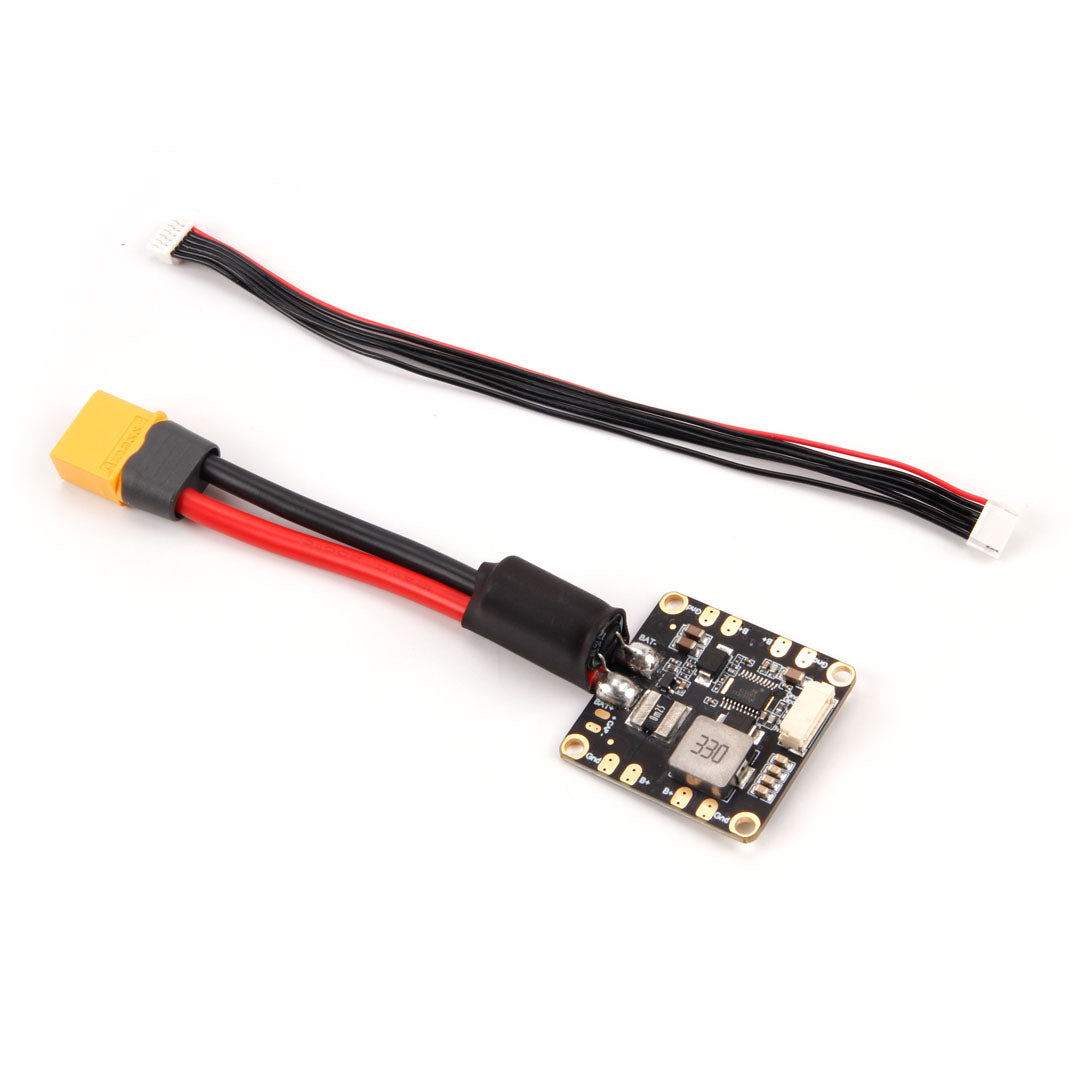

Package Includes
1x PM06 Power Module
1x JST GHR 6pin 1.25mm pitch cable
