Holybro X500 V2 Kits

Almost Ready-to-Fly (ARF) Kit Feature:

• New design and minimal assembly time (~15 minutes)

• Carbon Fiber frame with fiber-reinforced nylon connectors providing easy & straightforward installation

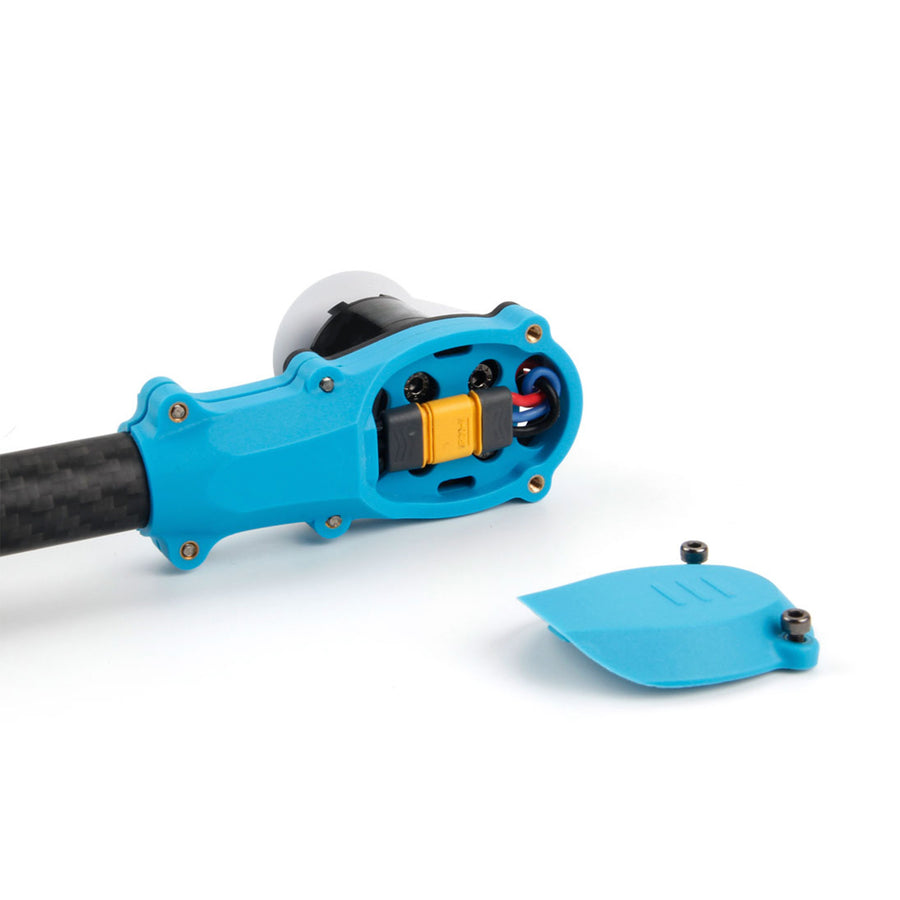

• Pre-installed motors & ESCs with simple XT30 power plugs for PDB

• Power distribution board (PDB) with XT60 & XT30 plugs - no soldering needed

• Mount for companion computers such as Raspberry Pi & Nvidia Jetson Nano

• Optional depth camera mount for Intel RealSense & Structure Core

• Mounting holes ready for Pixhawk Jetson baseboard (require standoffs)

Product Description:

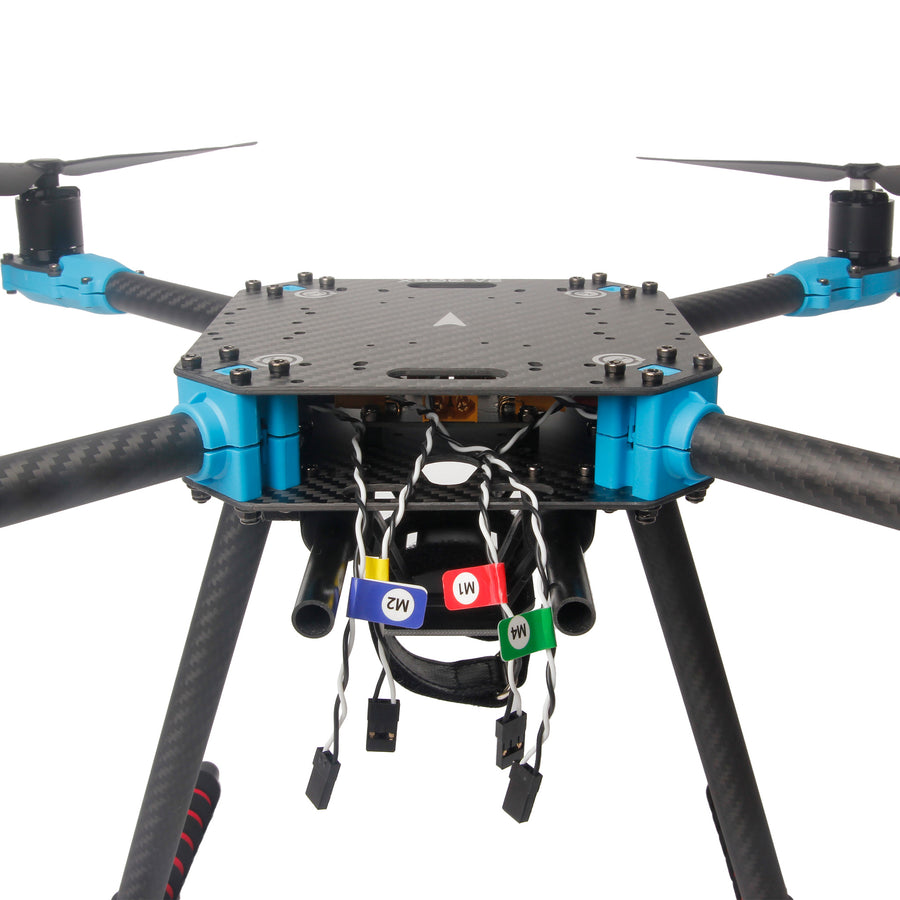

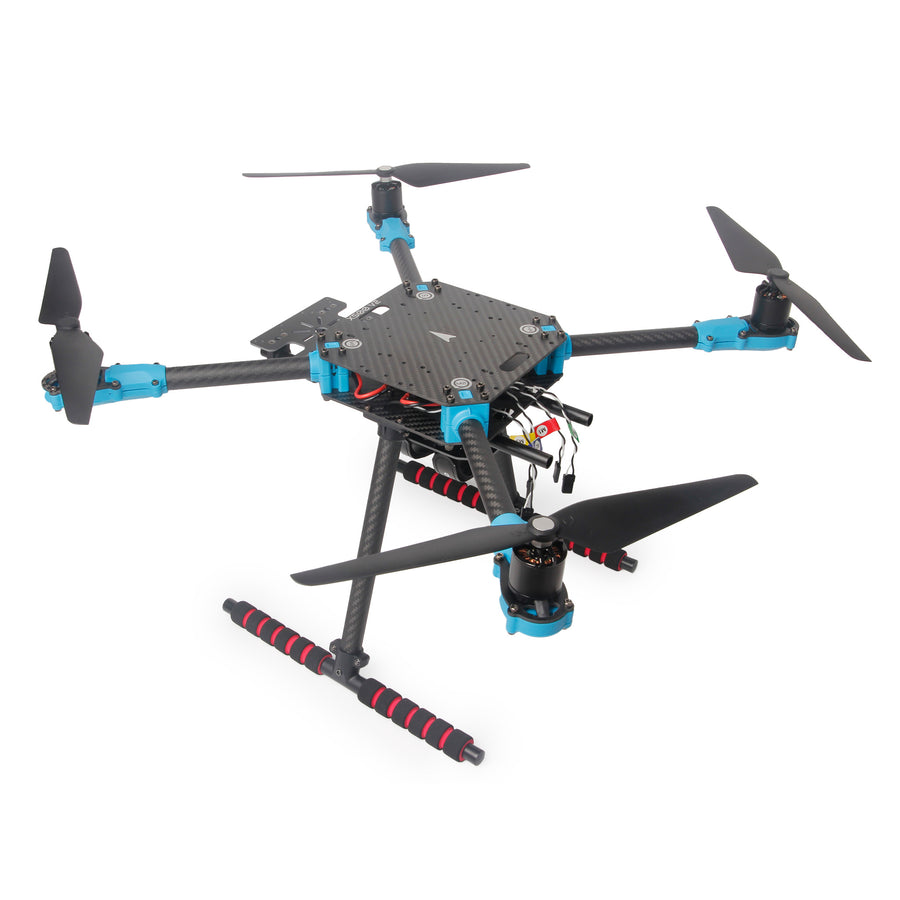

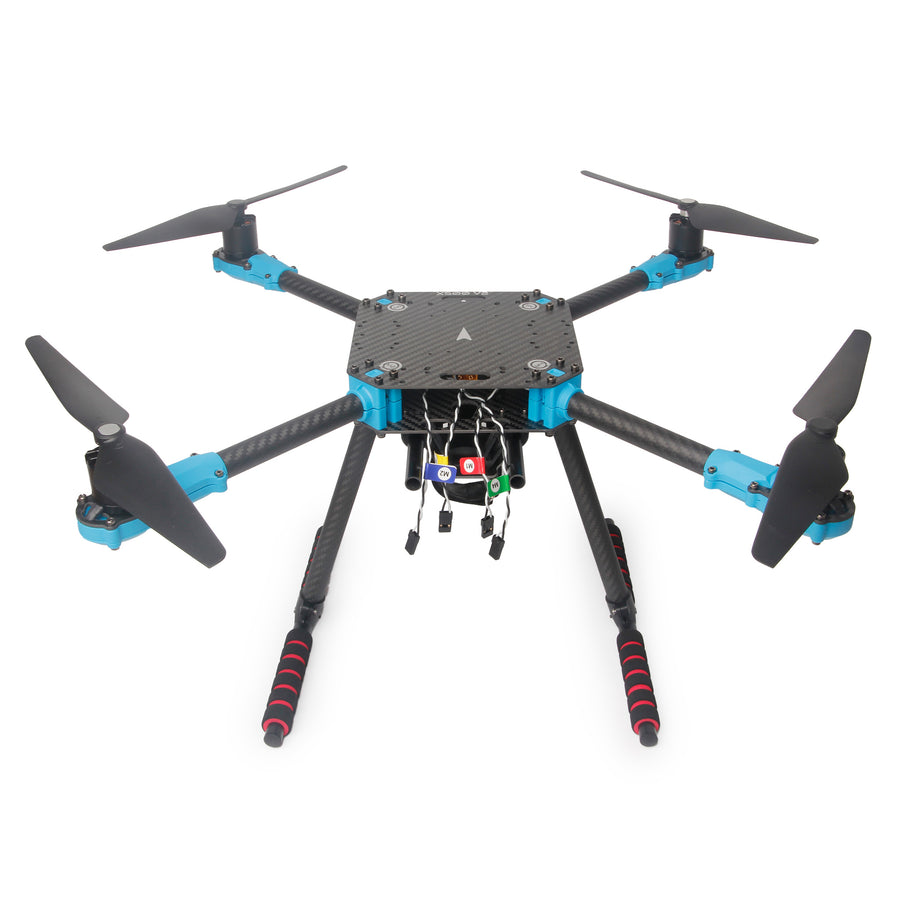

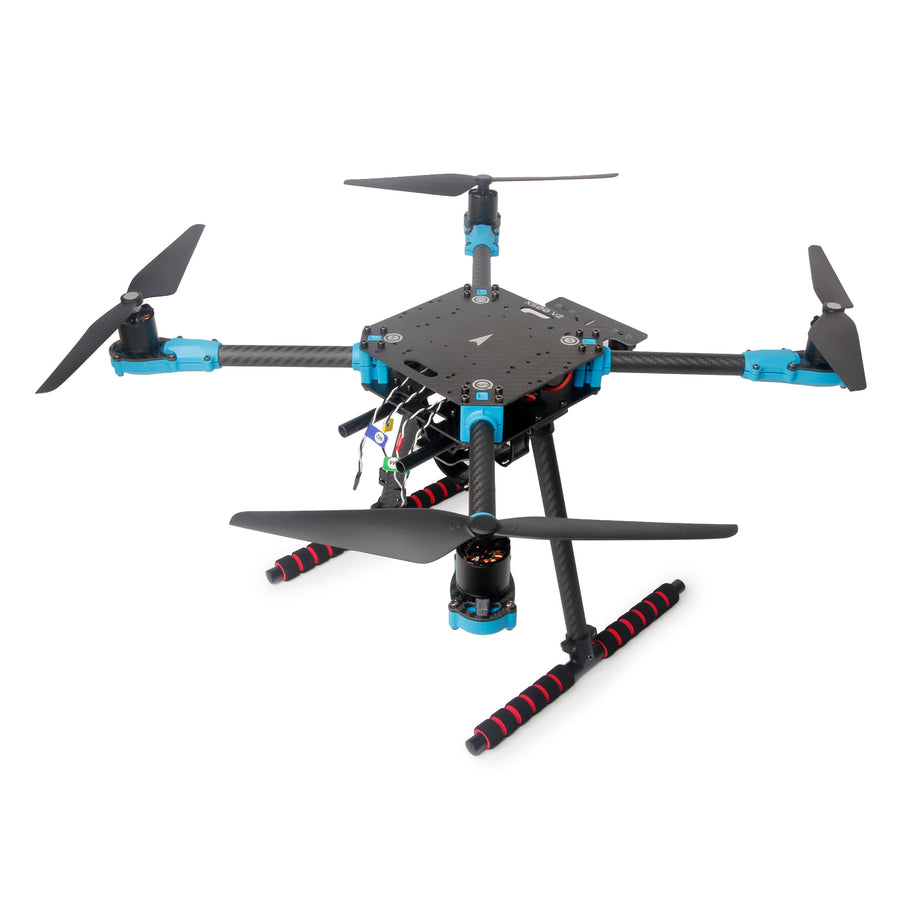

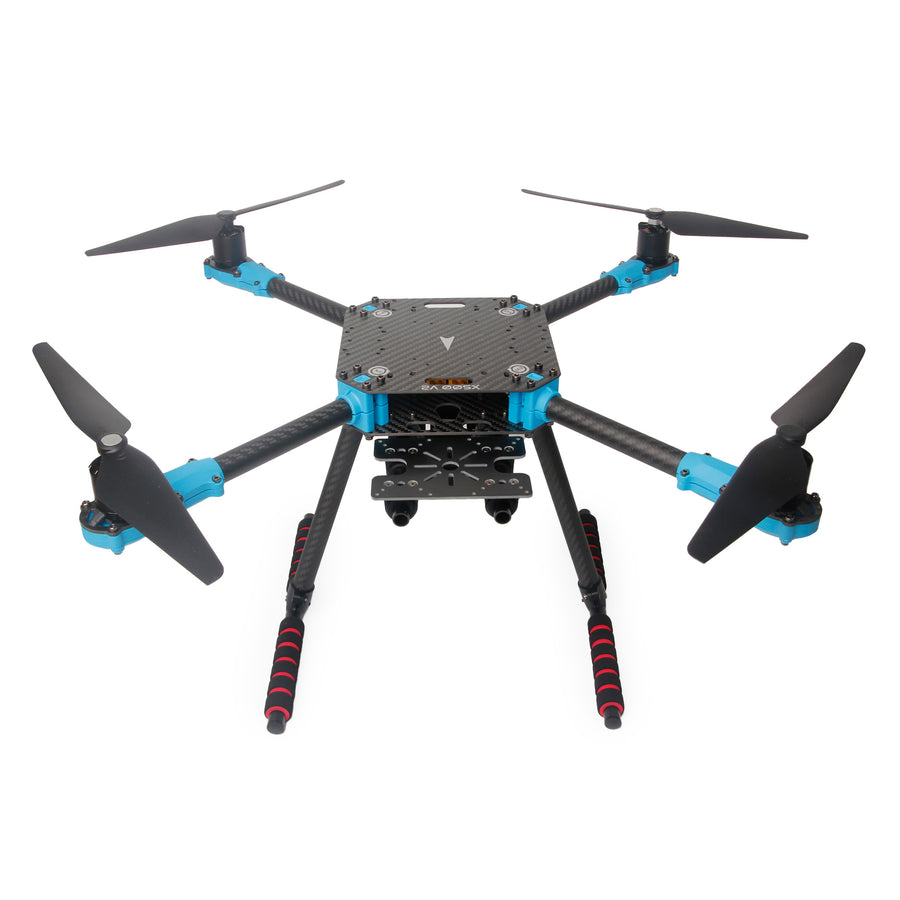

The X500 V2 ARF (Almost Ready-to-Fly) Kit is an affordable, lightweight, and robust carbon fiber professional drone kit that is easy to assemble (less than 15 minutes). It comes with the X500 V2 Frame Kit and motors, ESCs, power distribution boards and propellers preinstalled. It is perfectly compatible with various flight controllers such as the Holybro Pixhawk series, Durandal, Pix32 V5, etc. There are numerous improvements compared the previous model.

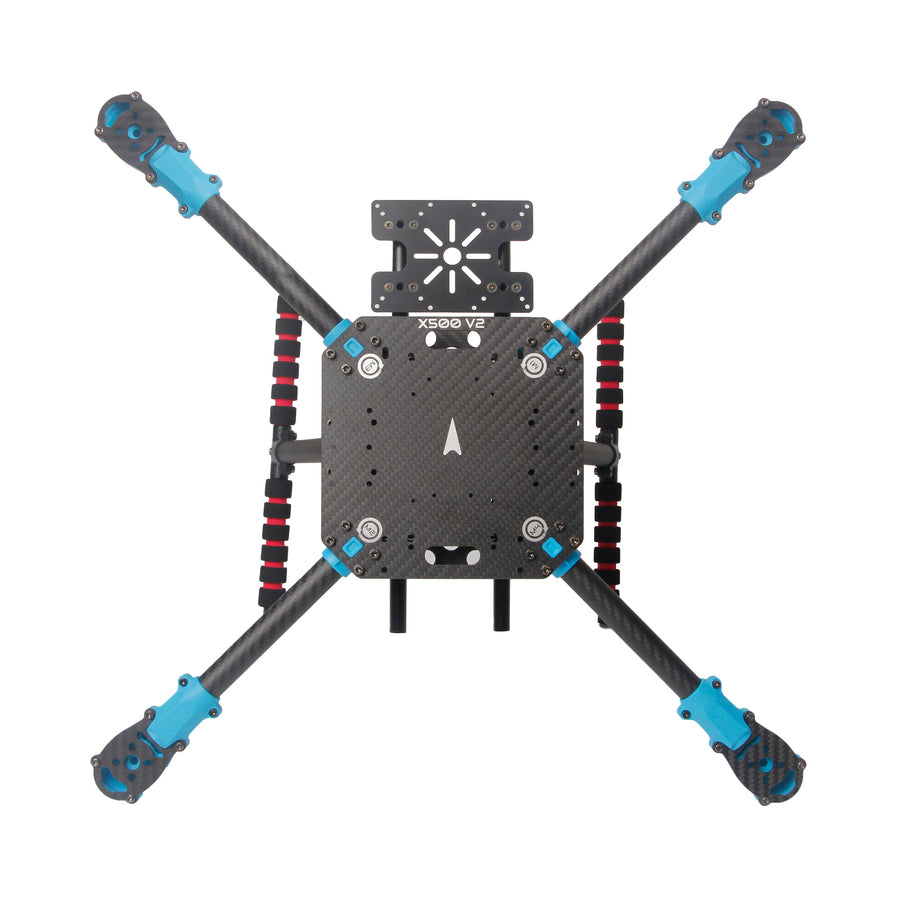

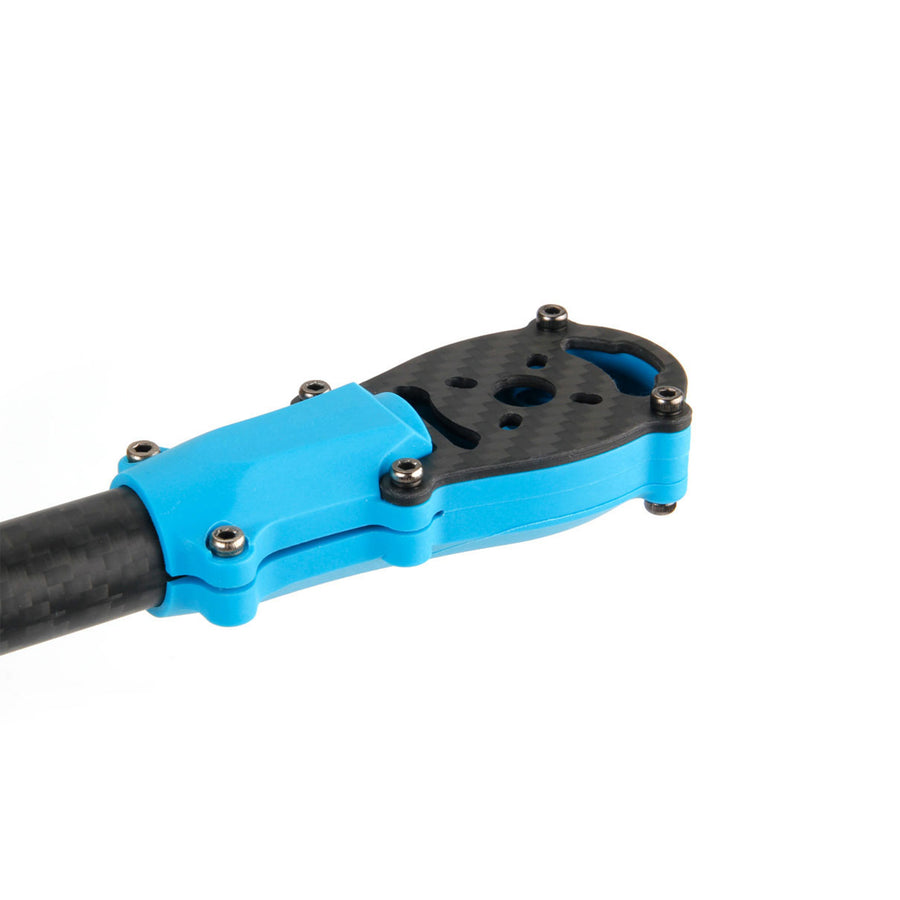

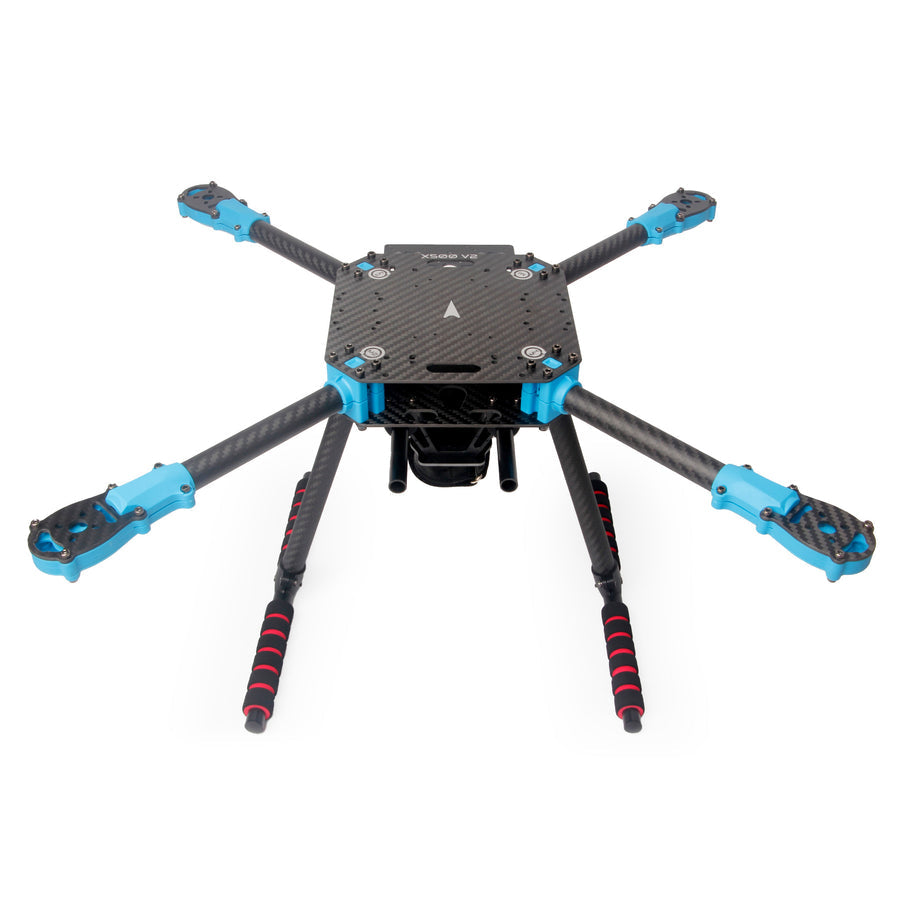

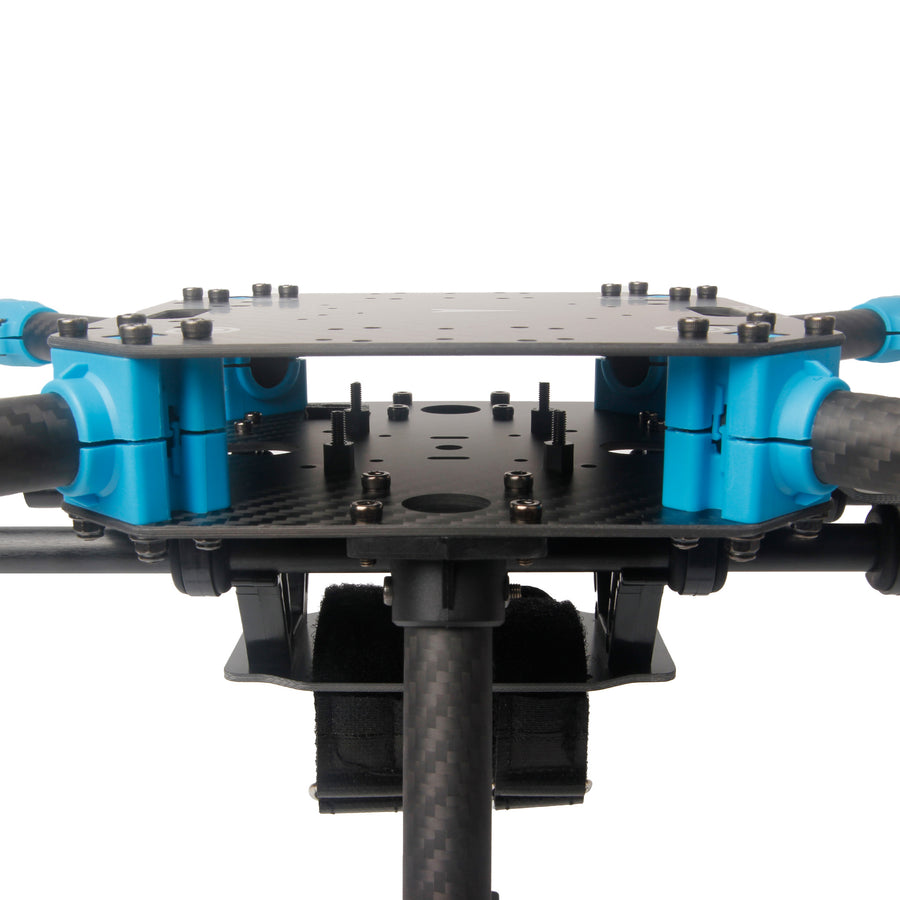

The X500 V2 Frame Kit is made with full carbon fiber twill, with carbon fiber tube arms supported by the newly designed fiber reinforced nylon connectors with convenient notches on both motor and body sides, providing a much easier & more straightforward installation. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes with connectors that has been thickened and strengthened.

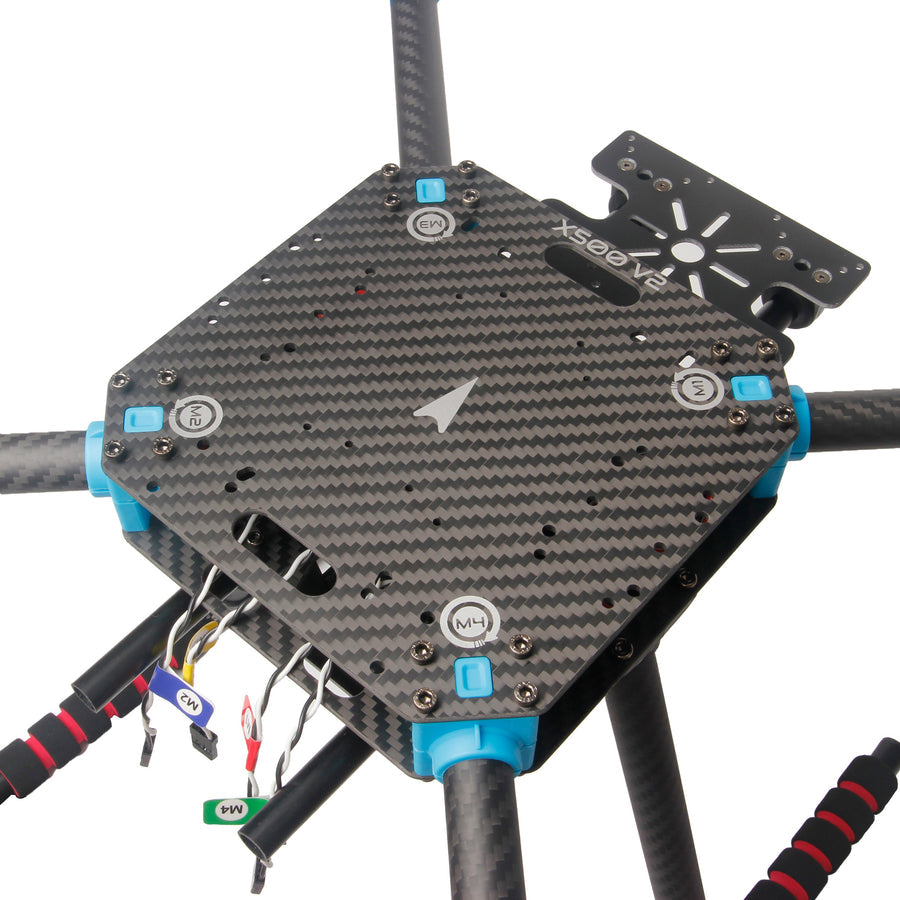

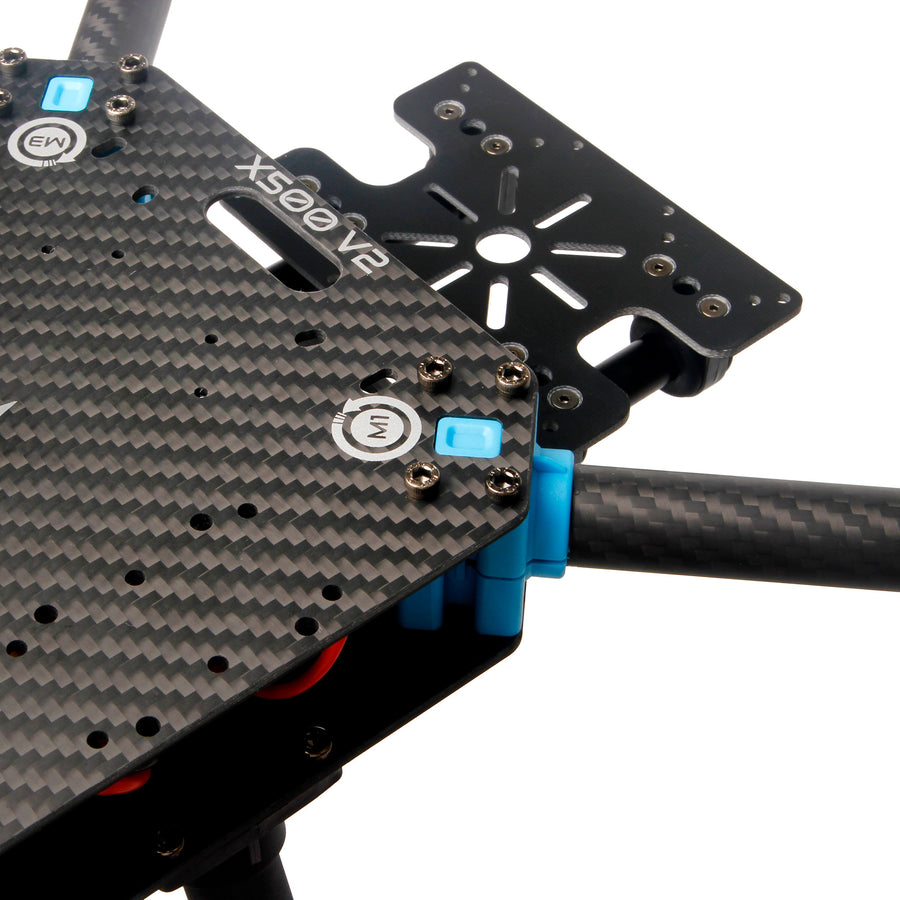

The spacing between top and bottom carbon fiber plates has been increased to provide an easier access. The platform board now has mounting holes for GPS & popular companion computers such as the Raspberry Pi 4 & Jetson Nano. The adjustable battery mounting board has been enlarged to support bigger batteries for longer flight time. The rail mounting system is ready to take a whole host of camera mounts and gimbals for various applications. There is an optional mount for various depth cameras such as the Intel RealSense series & Structure Core Depth Cameras (purchase separately). All tools for installation provided in box.

Kit Contents

X500 V2 ARF Kit (SKU30125):

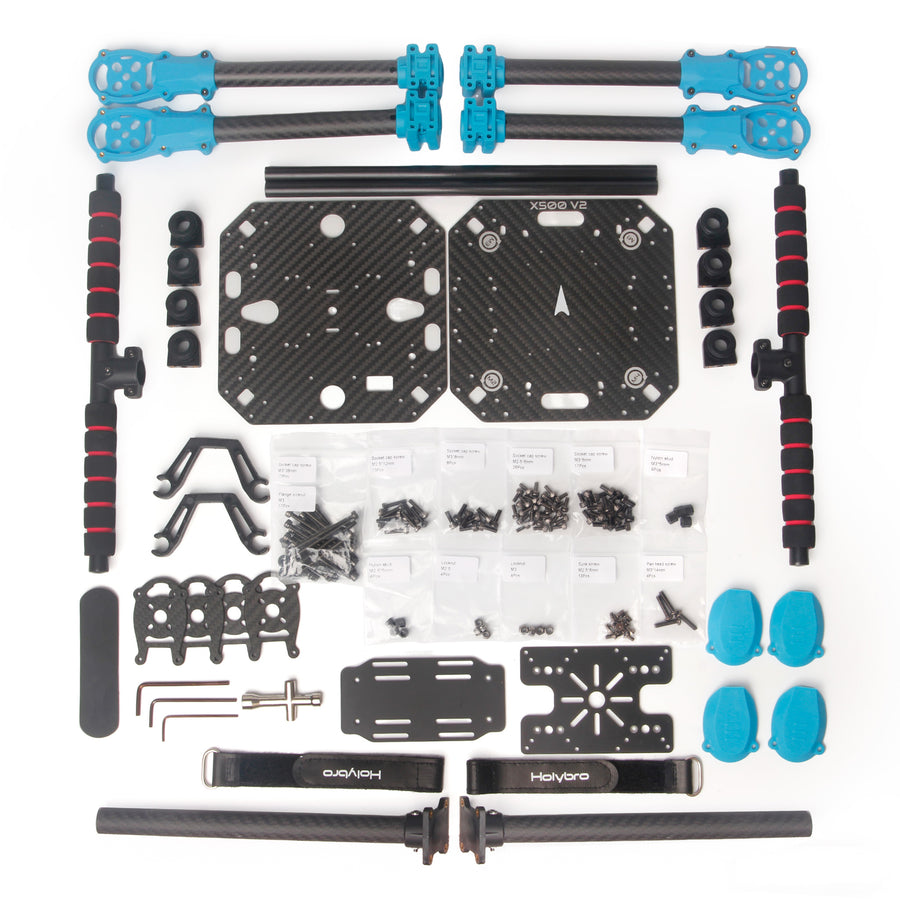

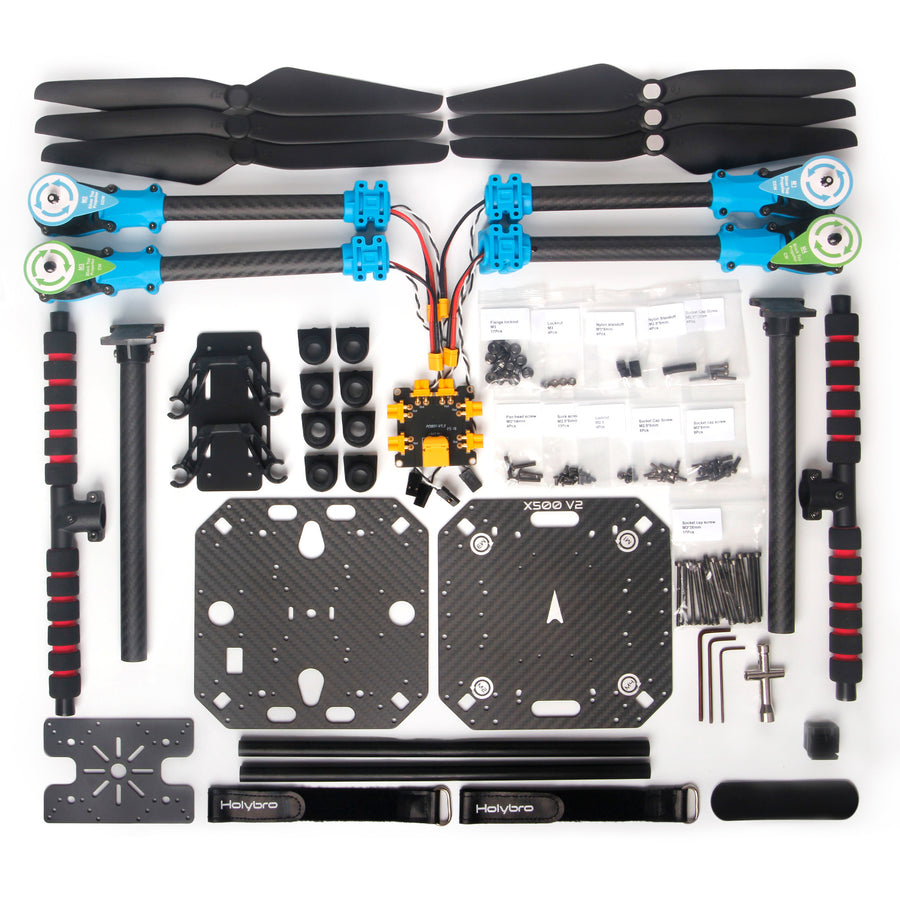

• X500 V2 Frame Kit

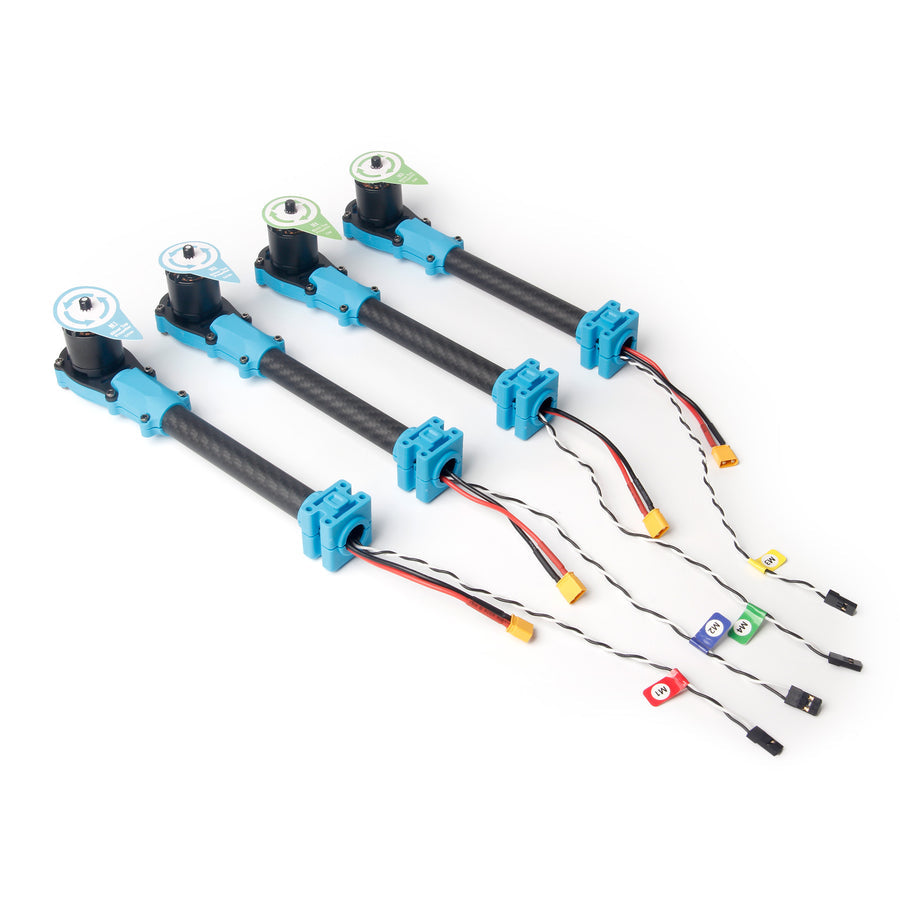

• With Preinstalled Items:

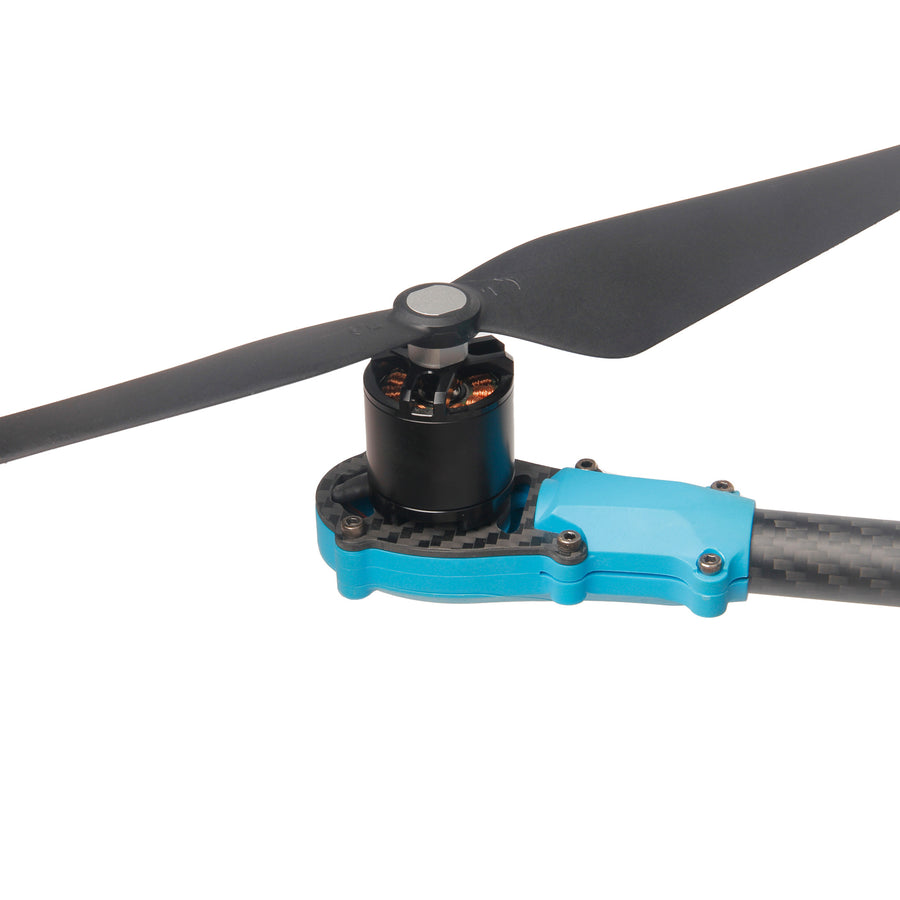

  • Motors - Holybro 2216 KV920 Motor (4 pcs) with XT30 Plug (Motor Specification can be found here)

  • ESCs - BLHeli S ESC 20A (4 pcs)

  • 1045 Propellers (6 pcs) with retainer

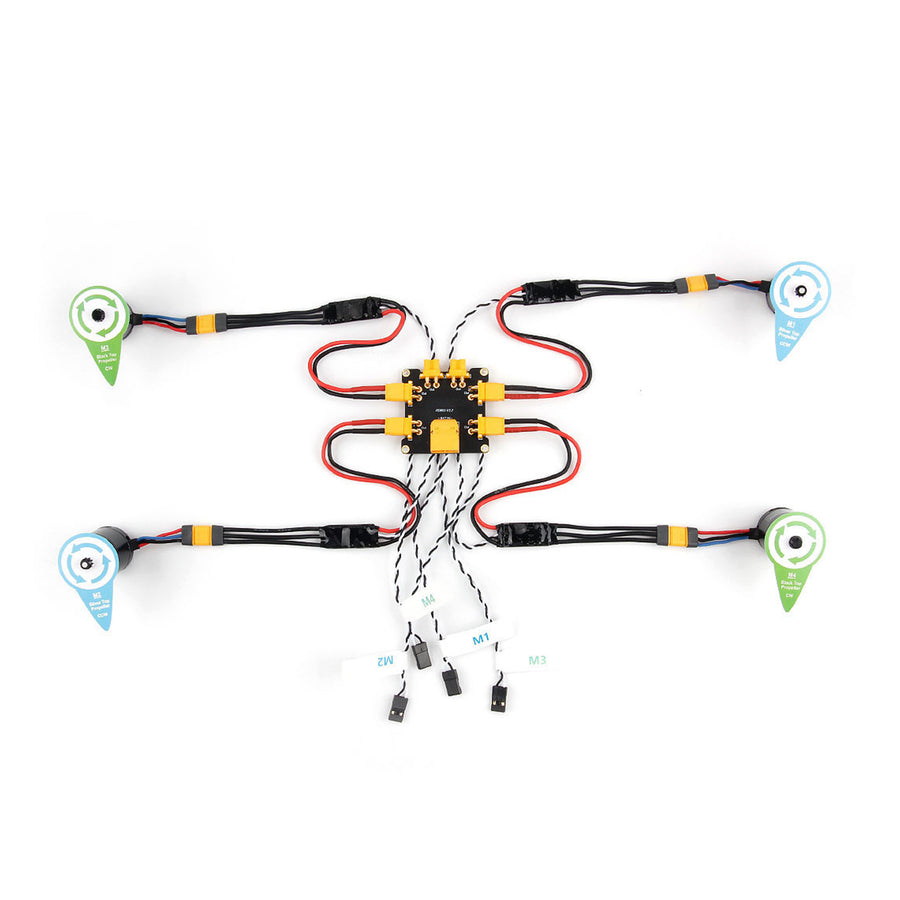

  • Power Distribution Board – XT60 plug for battery & XT30 plug for ESCs & peripherals

• Newly added propeller retainer to prevent fly-offs

• Note: Depth camera mount is sold separately.

X500 V2 Frame Kit Details (SKU30120):

• Body - Full Carbon Fiber Top & Bottom plate (144 x 144mm, 2mm thick)

• Arm - High strength & ultra-lightweight 16mm carbon fiber tubes with newly designed fiber-reinforced nylon connectors

• Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.

• Platform board - With mounting holes for GPS & popular companion computers such as the Raspberry Pi 4 & Jetson Nano

• Dual 10mm Ø rod x 250 mm long rail mounting system

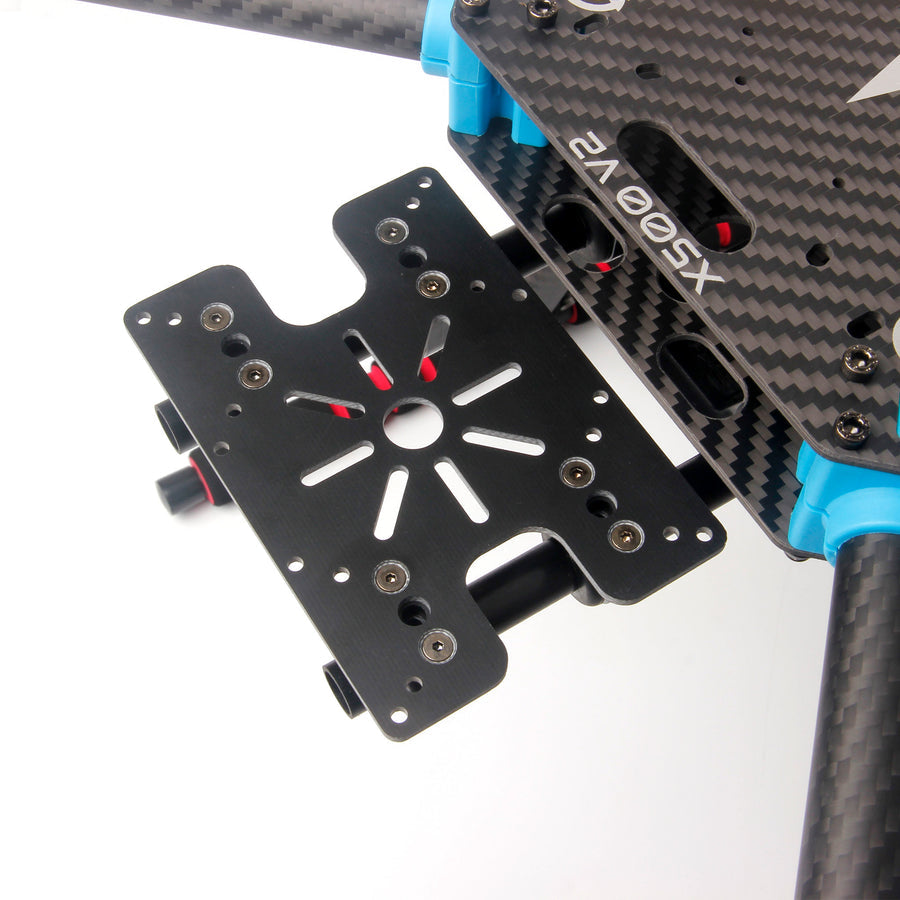

• Battery mount with two Battery Straps

• Hand tools for installation

Propeller Retainer Installation Guide:

Mechanical Specification:

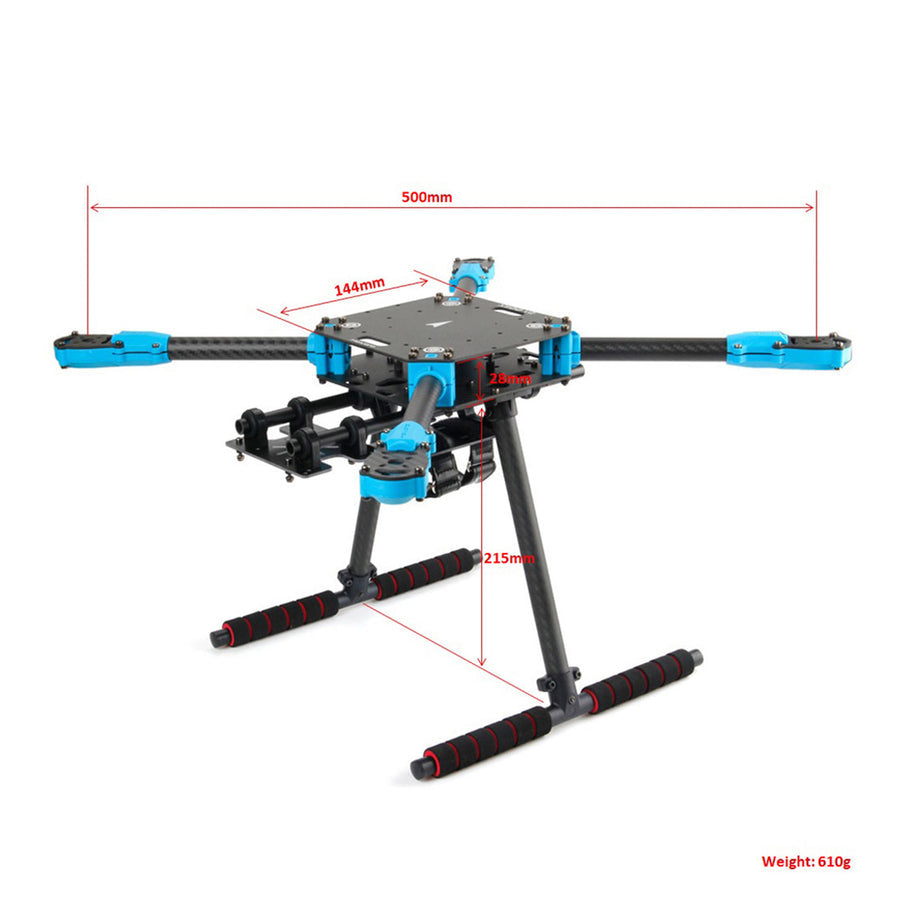

• Wheelbase: 500mm

• Motor mount pattern: 16x16mm & 19x19mm

• Frame Body: 144x144mm, 2mm thick

• Landing gear height: 215mm

• Space between top and bottom plates: 28mm

• Weight: 610g

• Flight time: ~18 minutes hover with no additional payload. Tested with 5000mAh Battery.

• Payload: 1500g (without Battery, 70% Throttle)

• Battery Recommendation: 4S 3000-5000mAh 20C+ with XT60 Lipo Battery (Not Included)

Recommendation Combination (Not Included):

• Flight Controller - Pixhawk 6C, Pixhawk 6x

• Power Module - PM02D, PM03D Power Module, PM02 V3,

• GPS - DroneCAN M8N/M9N GPS, Holybro M8N/M9N GPS, H-RTK F9P Rover Lite & Helical

X500 v2 Assembly Guide

Reference:

Motor specification

3D Print & CAD File:

Holybro_X500_V2_3D Print3D CAD File

Some Tips:
