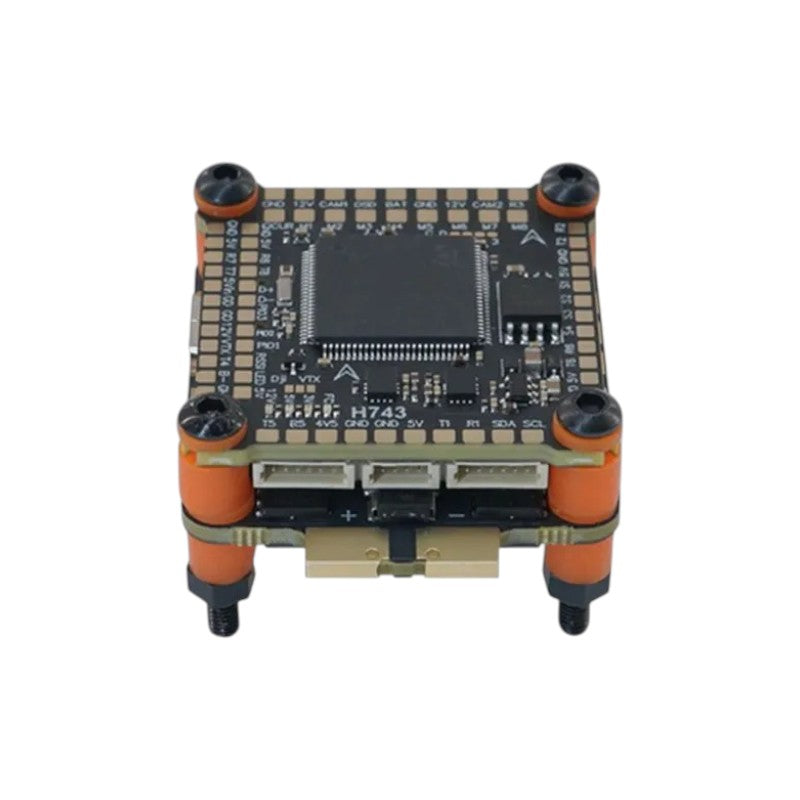

HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack

HPXGRC H743 60A 70A 80A Stack

Specifications: Product Name:  HPXGRC H743 30 x 30 Flight Controller Main Controller: STM32H743 Gyroscope: ICM42688P USB Interface...
Vendor: HPXGRC
Availability: Many In Stock
Product type: Flight Controllers
$63.33
$63.33
Please hurry! Only 0 left in stock
Options: H743 60A Stack

Free Shipping

Free standard shipping on orders over $99

Free Returns

Learn More.
HPXGRC H743 60A 70A 80A Stack

HPXGRC H743 60A 70A 80A Stack

$63.33
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack
HPXGRC H743 60A 70A 80A Stack

HPXGRC H743 60A 70A 80A Stack

$63.33
Options: H743 60A Stack
Description
Description
x

Specifications:

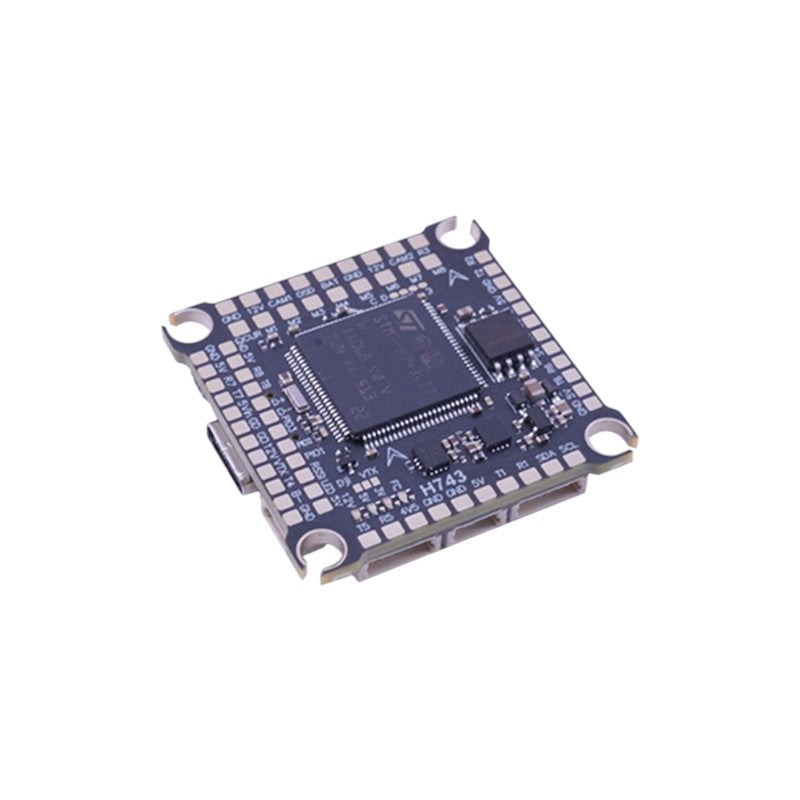

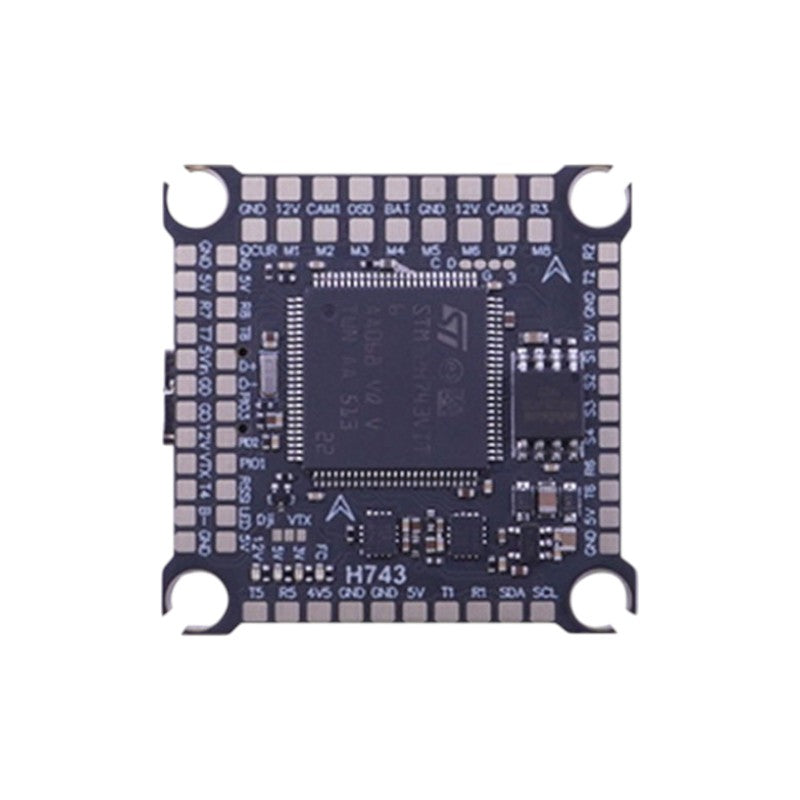

Product Name:  HPXGRC H743 30 x 30 Flight Controller

Main Controller: STM32H743

Gyroscope: ICM42688P

USB Interface Type: Type-C

Barometer: Built-in

OSD Chip: AT7456E

Bluetooth BLE: None

WIFI: Not Supported

DJI Air Unit Connection Method: Supports two ways - direct insertion into a 6-pin socket or soldering connection.

6-pin DJI Sky End Direct Socket Sub: Supported. Compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any wire sequence.

FLASH (Black Box): 16MB Flash Memory

Current Meter: Supported

Input Voltage: 3-12S Lithium Battery

UART Serial Ports: 8 Groups

Buzzer Pad: Supported. BZ+ and BZ- pads can be connected to 5V active buzzer

BOOT Button: Supported. [A]. Press the BOOT button and supply power to the flight controller simultaneously to force it into DFU mode, which is used for firmware flashing when the flight controller has a problem.

RSSI Pad: Supported. Located at the top of the front RS pad

SmartPort/F.Port: Not Supported

Supported Flight Controller Firmware Types: BetaFlight (default factory firmware), Ardupilot

Firmware Target Name: DAKEFPVH743

Installation Hole Position: 30.5 x 30.5mm (4mm hole diameter)

Size: 36 x 36 x 8 mm

Weight: 8g

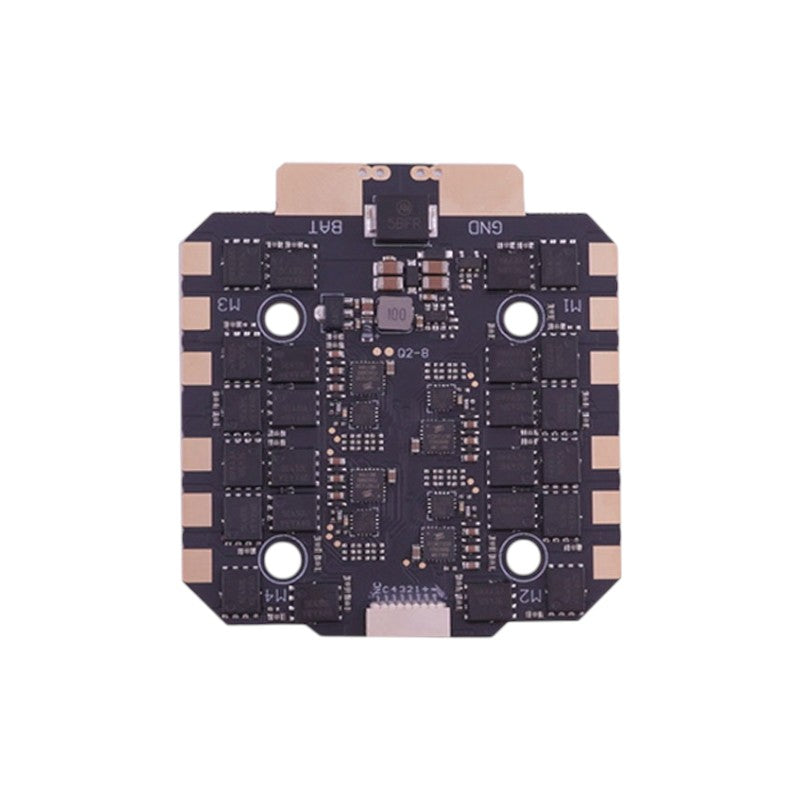

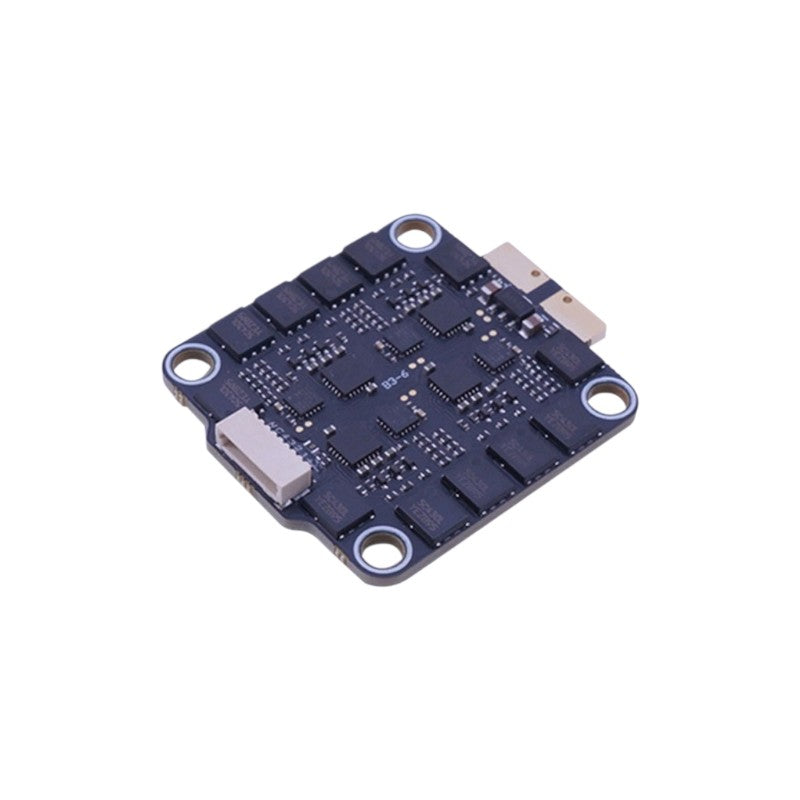

HPXGRC 8S 60A ESC

Electricity Control Firmware: BLHeli_S/Bluejay

Firmware Version: B_X_30_24_v0.19.2

MCU: EFM8BB21F16G-C-QFN20R

MOS Transistor : ON5C430NL

Continuous Maximum Current : 60AX4

Instantaneous Maximum Current : 65AX4-10S

TVS : Yes

Electrolytic Capacitor : 35V 1000uF Low ESR Capacitor

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot.

Battery Input : 3-8S

Current Meter : Supported / Current meter ratio 120

Power Output : VBAT

Weight : 12g

Dimensions : 43mm * 37mm * 7mm

Installation Hole Position : 30.5mm x * 30.5 / M4

Operating Temperature : 20℃~+85℃

Storage Temperature : 20°C~+70°C

Operating Temperature : 20~95%



HPXGRC 8S 70A ESC

Electricity Control Firmware: BLHeli_S/Bluejay

Firmware Version: B_X_30_24_v0.19.2

MCU: EFM8BB21F16G-C-QFN20R

MOS Transistor : ON5C430NL

Continuous Maximum Current : 70AX4

Instantaneous Maximum Current : 70AX4-10S

TVS : Yes

Electrolytic Capacitor : 35V 1000uF Low ESR Capacitor

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot.

Battery Input : 3-8S

Current Meter : Supported / Current meter ratio 120

Power Output : VBAT

Weight : 12g

Dimensions : 43mm * 37mm * 7mm

Installation Hole Position : 30.5mm x * 30.5 / M4

Operating Temperature : 20℃~+85℃

Storage Temperature : 20°C~+70°C

Operating Temperature : 20~95%



HPXGRC 8S 80A ESC

Electricity Control Firmware: BLHeli_S/Bluejay

Firmware Version: B_X_30_24_v0.19.2

MCU: EFM8BB21F16G-C-QFN20R

MOS Transistor : ON5C430NL

Continuous Maximum Current : 80AX4

Instantaneous Maximum Current : 85AX4-10S

TVS : Yes

Electrolytic Capacitor : 50V 4700uF Low ESR Capacitor

Motor Protocol : Dshot300/Dshot600/PWM/Bi-directional Dshot.

Battery Input : 3-8S

Current Meter : Supported / Current meter ratio 120

Power Output : VBAT

Weight : 30g

Dimensions : 56mm * 59mm * 7mm

Installation Hole Position : 30.5mm x * 30.5 / M4

Operating Temperature : 20℃~+85℃

Storage Temperature : 20°C~+70°C

Operating Temperature : 20~95%
