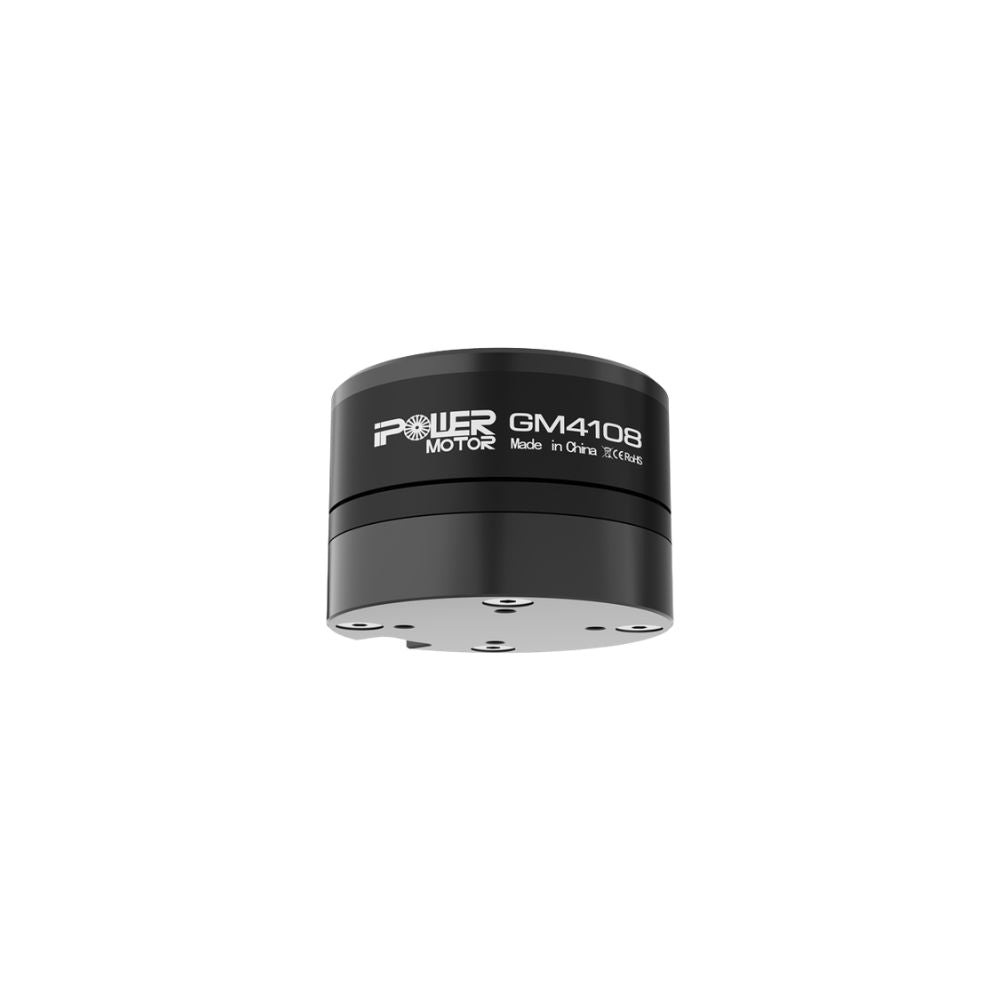

Model: GM4108H
Motor Out Diameter: Ф47±0.05mm
Configuration: 24N/22P
Motor Height: 32.3±0.2mm (Included with Encoder housing)
Hollow Shaft(OD): Ф10-0.008/-0.012mm
Hollow Shaft(ID): 8+0.05/0mm
Wire Length: 265±3mm
Cable AWG: #24
Motor Weight: 137±0.5g
Wire plug: 2.5mm dupont connector
No-load current: 0.07±0.1A
No-load volts: 20V
No-load Rpm: 513~567 RPM
Load current: 1.5A
Load volts: 20V
Load torque(g·cm): 1200-1800
Motor internal resistance: 11.1Ω±5%(Resistance varies with temperature)
High voltage test: DC500V 1mA@2sec
Rotor housing runout: ≤0.1mm
Steering (axle extension): Clockwise
High-low temperature test:
High temperature: Keep at 60℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Low temperature: Keep at -20℃ for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power: ≤25W
Working current: 3-5S
Working temperature: -20~60℃;10~90%RH

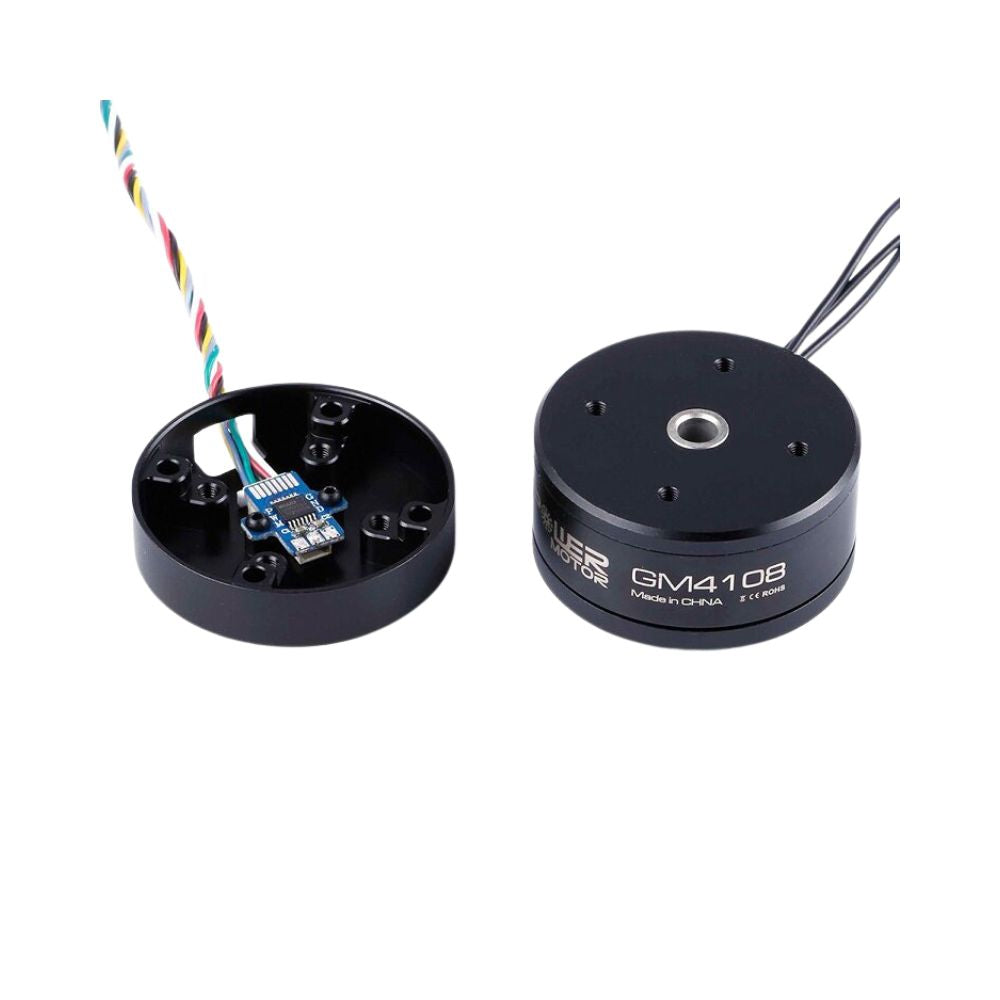

1x iPower GM4108H-120T Gimbal Motor

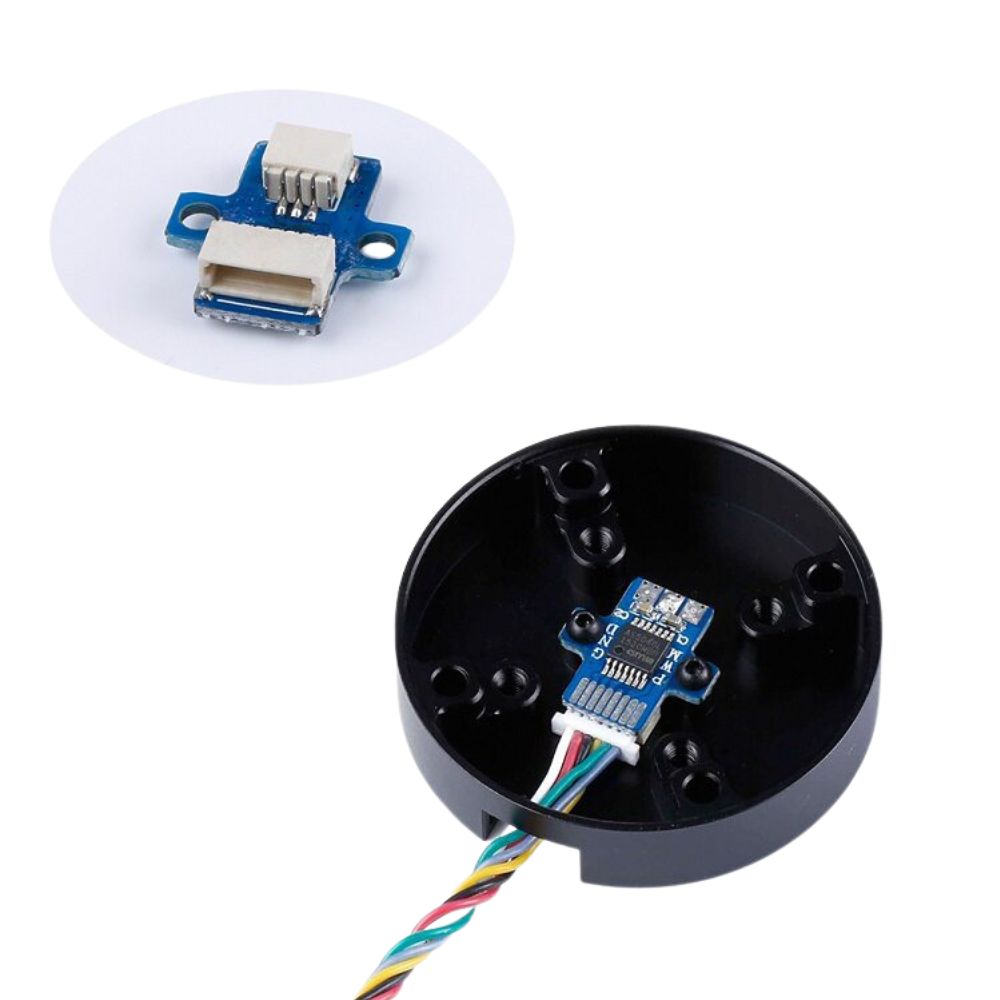

1x AS5048A Encoder with aluminum case
