iFlight XING 4214 FPV Brushless Motor - 400KV / 660KV
The iFlight XING 4214 motor is designed to provide responsive power with a low KV. It is...
- $104.99
- $104.99
- Unit price
- per
Please hurry! Only 0 left in stock
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Free Returns
Learn More.
Description
xThe iFlight XING 4214 motor is designed to provide responsive power with a low KV. It is perfect for 6S 15" X-Class racing drone like iX15! Named after and inspired by the XING series motor, matching its smooth and aggressive flying style, this motor comes with a solid stator & Pacific copper wires in combination with N45SH magnets & very small air gap. EZO bearings provide a silky smooth flight. All these results in unbelievable flight performance and experience!

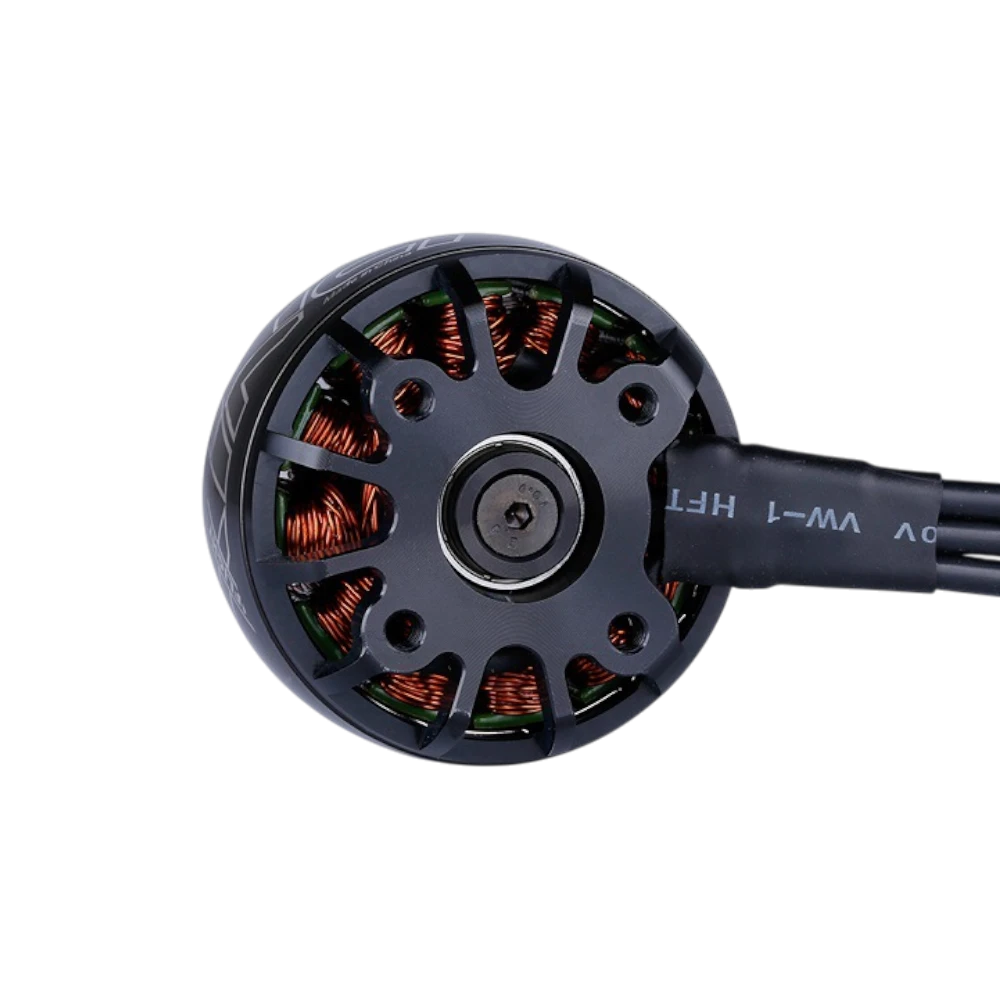

Pre-tinned 800mm wires and 4mm threaded holes in 30*30mm pattern on the back plate apply to most X-Class frames on market. The hollowed-out lightweight base increases cooling and efficiency.
All in all, the new iFlight XING 4214 is definitely the first choice for X-Class racing!
Features
- Specially designed for X-Class Racing
- Oxidation-Color 7075 T6 milled aluminum Bell and Base
- 420 stainless steel
- Japanese Kawasaki 1200 Iron Core
- Solid Pacific 220℃ Heat-Resistant Copper Wire & Winding
- Long life Japanese EZO bearings
- N45SH High-temperature tegular magnets, small air gap
- Electromagnetically matched magnets and stator
- Optimized heat dissipation structure design, 20% heat reduced
- Max 7.9kg thrust of 660kv
- 50%-90% thrust max efficiency and thrust
- Single piece 6mm shaft runs throughout motor to prevent bell warping in hard hits
- Hex bolt shaft set screw for easy maintenance
- Dynamically balanced
- Motor wire protected
Specifications
Model: XING 4214 Motor
KV: 400KV / 660KV
Weight(included wire): 255.8g/255.2g
Dimension: φ50*33mm
Interphase Resistance: 61.6mΩ / 35.6mΩ
Peak Current: 30.9A / 98A
Max Watt: 741.6W / 2352W
Shaft Diameter: 6mm
Shaft Protruding Length: 26.5mm
Configuration: 12N14P

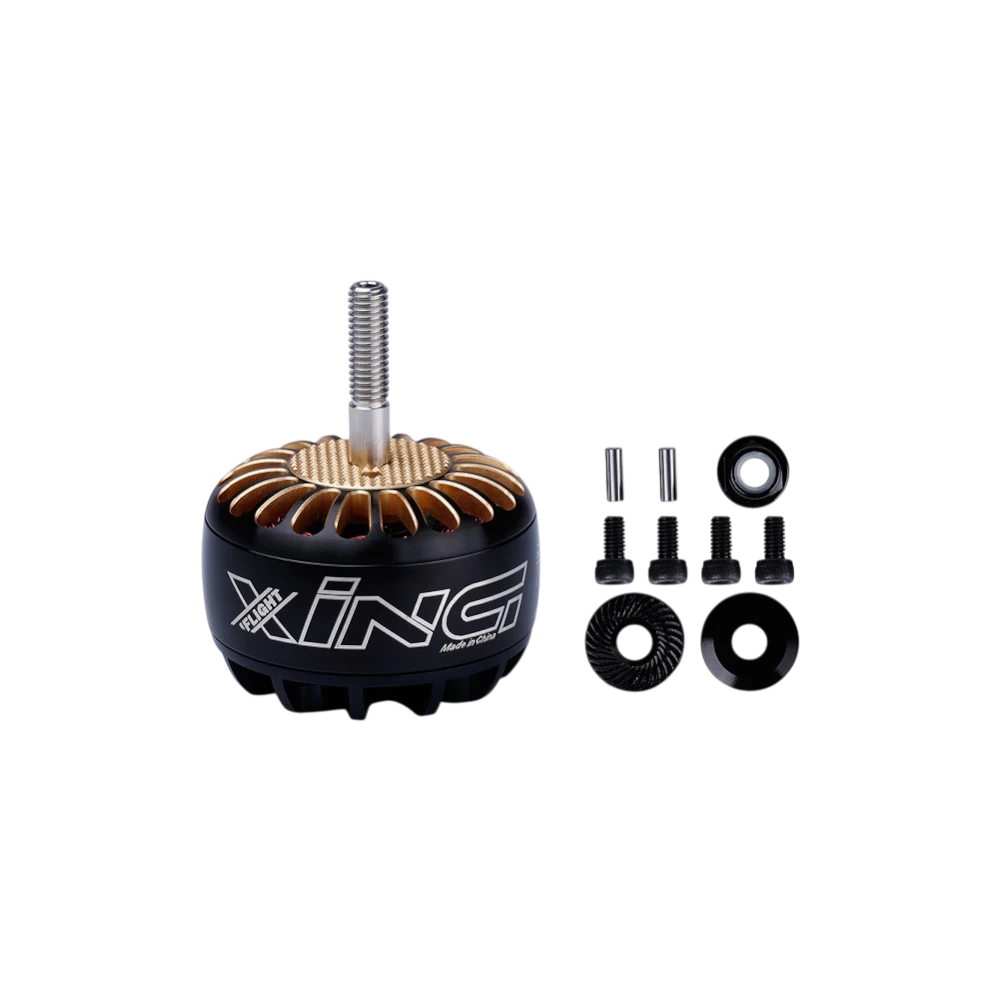

Package List
1 x XING 4214 X-Class Racing Motor
1 x Screws & nut Pack
