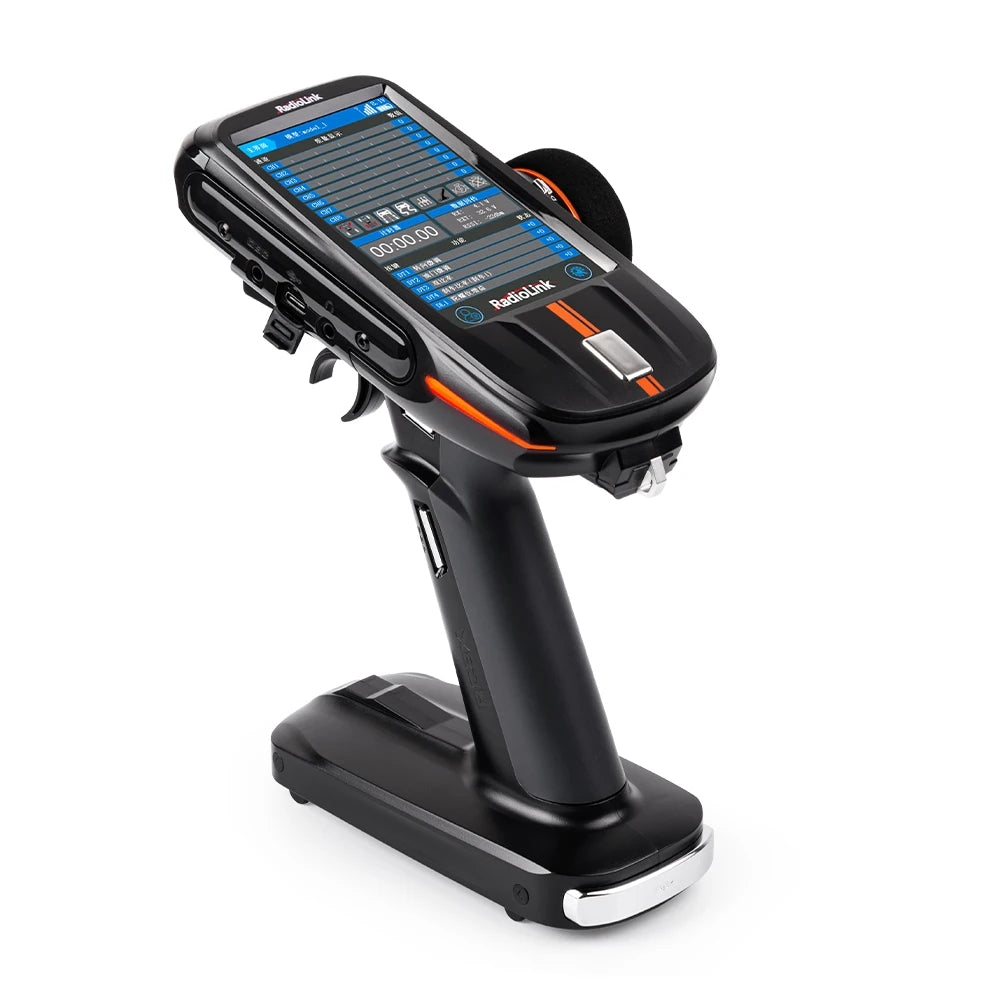

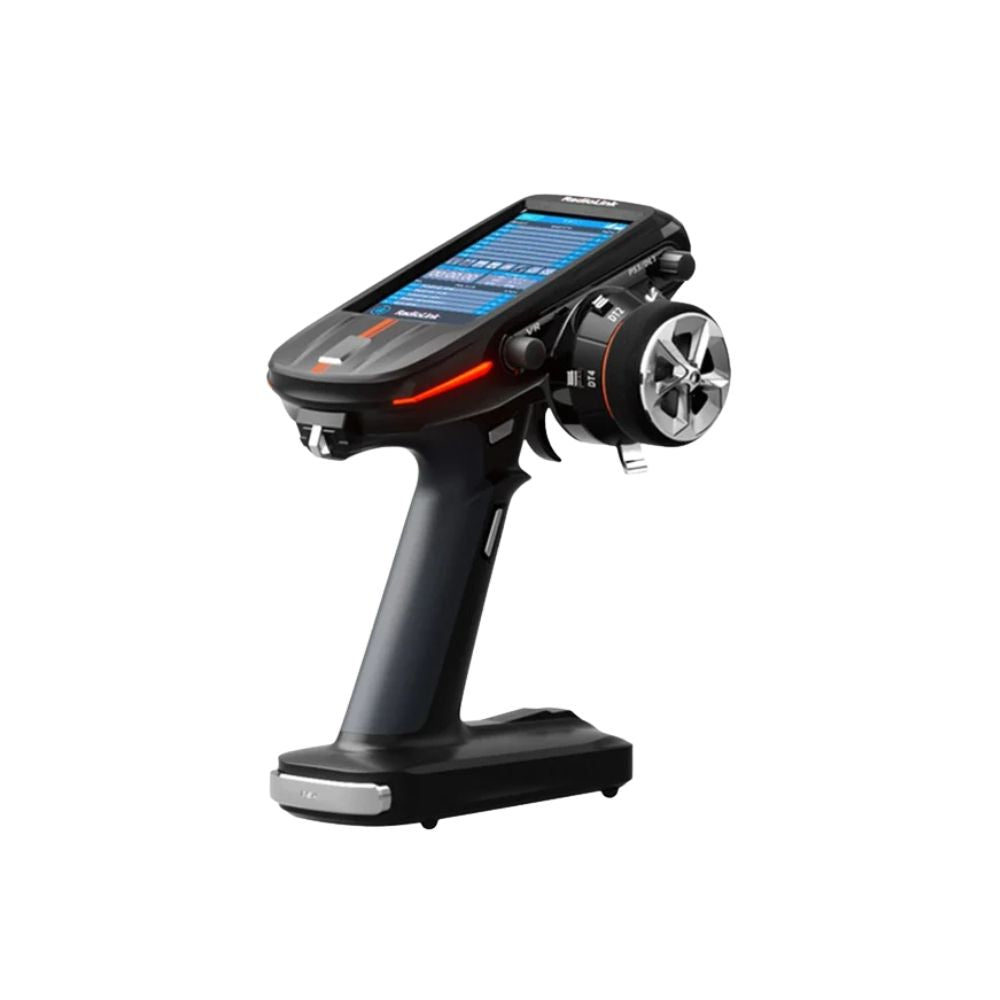

Radiolink RC8X 2.4G 8CH 4.3inch LCD Touch Screen Transmitter Compatible

On the basis of latest RC6GS V3 7 Channels radio, RC8X has the following new upgrades:
8 Channels
4.3 Inches Full Color LCD Touching Screen
Support voice customization on all functions
Rich Audio and Video Interfaces
One Screen Dual Use
200 Groups Models Storage
8 Groups Programmable Mix Control
16 Groups ID seed

Compatible all previous receivers R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM, R4F

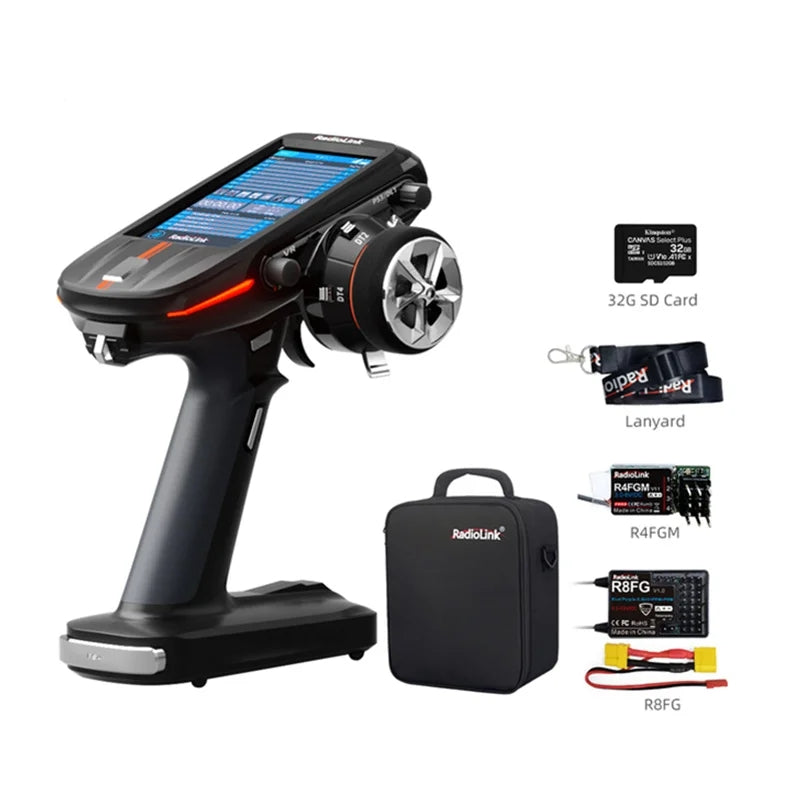

New Standard Package List:
RC8X radio x1
R8FG receiver x1
R4FGM mini receiver x1
XT60 telemetry cable x1

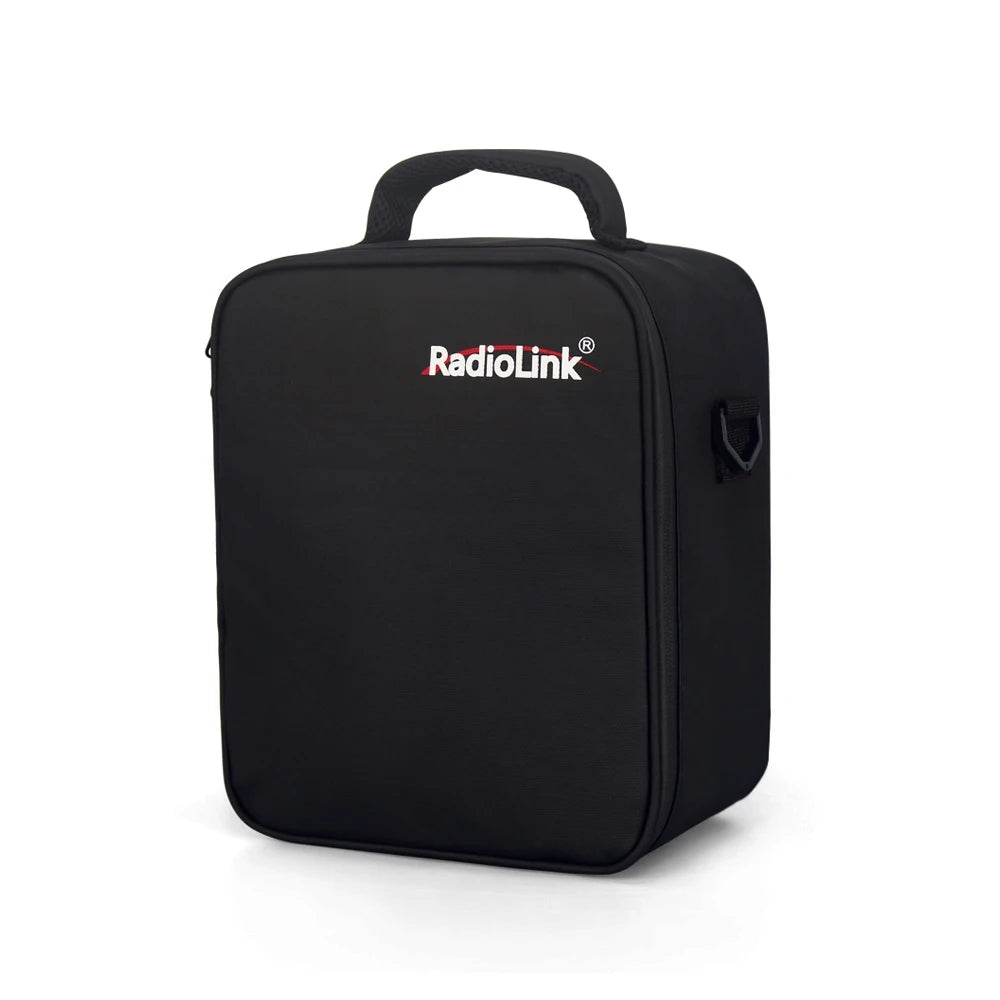

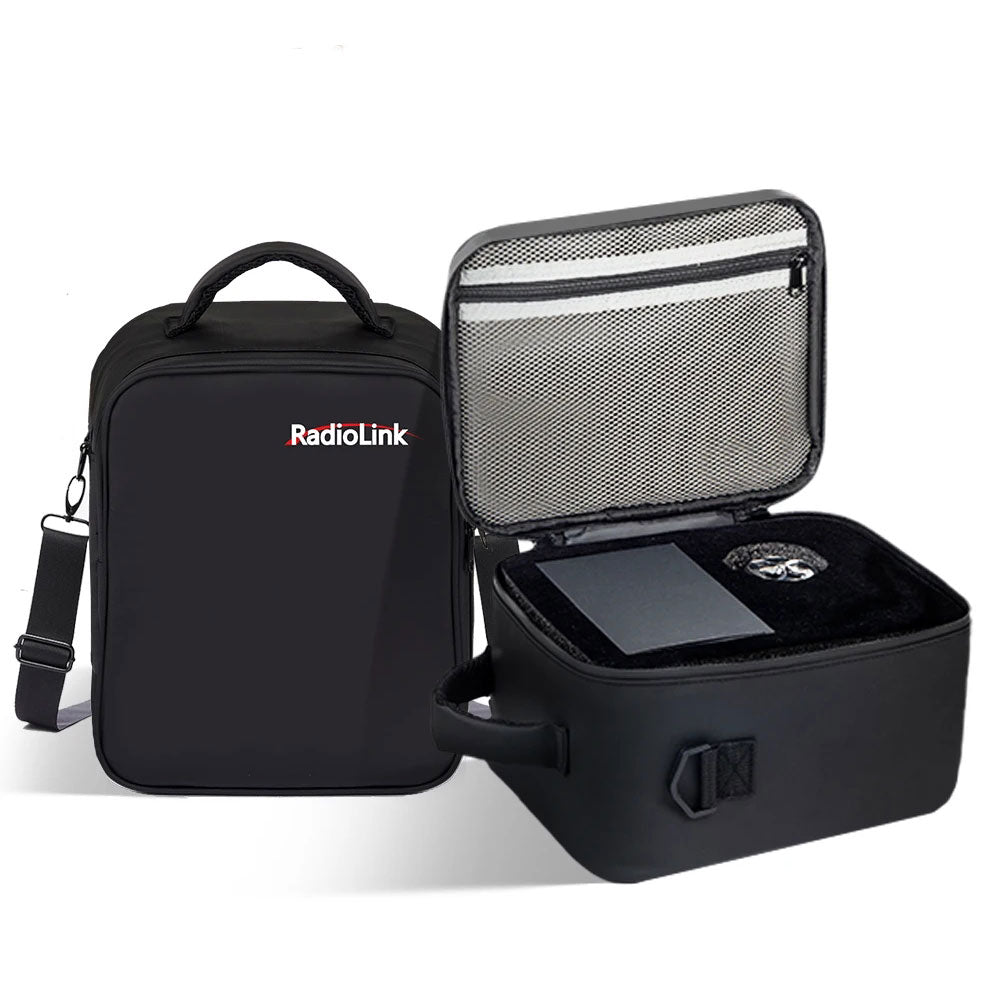

Carrying bag x1
Neck lanyard x1
32GB SD card x1
USB cable(type-c port) x1
Throttle trigger replacement x1
Screwdriver x1
User manual x1

RC8X Main Features:
Innovative Software Technology: RC8X is for the first time runs a lightweight RTOS system on the ARM A-series chip originally running Linux. High-end configuration with ARM9 processor, 720MHz main frequency, 32M RAM and support multiple audio and video interface.
Full Color LCD Touch Screen : 4.3 Inches 800*480 dot matrix capacitive touching screen with ultra-narrow frame and fast scroll without lag. Scary faster screen responsiveness in switching function pages, provide you mobile phone-level screen refresh experience. Besides, the screen can be used for parameter setup and FPV display at the same time when an external 5.8G receiver module is connected, easily realize dual use on one screen.
Personalized Custom Functions: Support custom voice broadcast content, voice broadcast form, setting menu, font, the color of background and font, desktop, system theme, function button, etc; you can achieve a totally unique 8 channels transmitter without one code to modify.
8 Channels for Multiple Types of Models: With steering curve, throttle curve, brake curve, etc, RC8X is an ideal partner for all types RC cars and boats in the market,including single-engine and twin-engine models such as Crawlers, Tanks, Trucks, Caterpillars, Basher, Drifting,Bait Boat, etc. Pseudo random algorithm FHSS communication technology makes the control distance up to 600 meters on the ground.
Multiple Programmable Mix Control: Support 9 groups mix control including 4WS, 4WD, tank mixing, tilt mixing, CPS mixing etc. It has 8 groups programmable mix control and any 2 channels can be easily set. You could realize every precise driving operation under different complex terrains.
200 Models Storage & 16 ID Seed: RC8X is capable of an arbitrary ID designation among a maximum of 16 binding receivers and can storage a maximum of 200 groups models parameters saved.A model memory with different setups can be created by using the model copy function.
Ergonomically Designed for Hours of Fun: The steering wheel support left and right installation to meet different usage habits. Rational throttle trigger length and tension, make easy and accurate for throttle adjustment.User-friendly design for each operation and handling.

RC8X Specifications:
Model Type: RC8X
Channels: 8 channels
Screen: 4.3 inches, 800*480 dot matrix, full-color, capacitive LCD touch screen
Working Voltage:7~15V DC (8 pieces of AAA batteries or a 2S-4S LiPo battery or a 6S Ni-MH battery)
Working Current: 290mA±10mA@8.4V(the LCD screen light on); 200mA±10mA@8.4V(the LCD screen light off)
Model Storage: 200 models memory
Control Range: 600 meters on ground
Program Mix: 9 groups program mixes
ID Seed: 16 groups
Voice Broadcast: Support, and all the operating can set alarm with voice broadcast, buzzer, or vibration
Menu Customized: Setting Menu, font, desktop, system theme, etc
Low Voltage Alarm: Low transmitter voltage, low receiver voltage, low model battery voltage or low RSSI alarm can be customized
CRSF Protocol : Support TBS Crossfire
FPV Head Track Function: Support
Training Function:Support
Simulator: Support
Headphone: Support, 3.5 mm Jack
Extended Memory: Up to 64GB
Language: Chinese, English and other
Upgrade: USB online upgrade
Transmission Power: <20dBm
Channel Resolution: 4096 with regular jitter of 0.5us
Spread Spectrum Mode: FHSS, 67 channels pseudo random frequency hopping
Modulation Mode: GFSK
Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)
Applicable Model: RC Car(Including Crawlers/Tanks/Caterpillars)/Boat/Robot
Compatible Receiver: R8FG(Std), R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM, R4F

R8FG Specifications:
Channel: 8 channels
Operating Voltage:3-12V
Operating Current: 30mA
Signals: PWM/ SBUS&PWM/ PPM&PWM
Telemetry: Real-time built-in telemetry of model battery voltage(up 33.6V, 8S Lipo), RSSI, and receiver voltage
Gyro: Receiver with gyro integrated, customizable gyro sensitivity
Water Splash Proof: Yes, the waterproof grade is IPX4
Control Distance: 600 meters
Weight: 10.5g(0.37oz)
