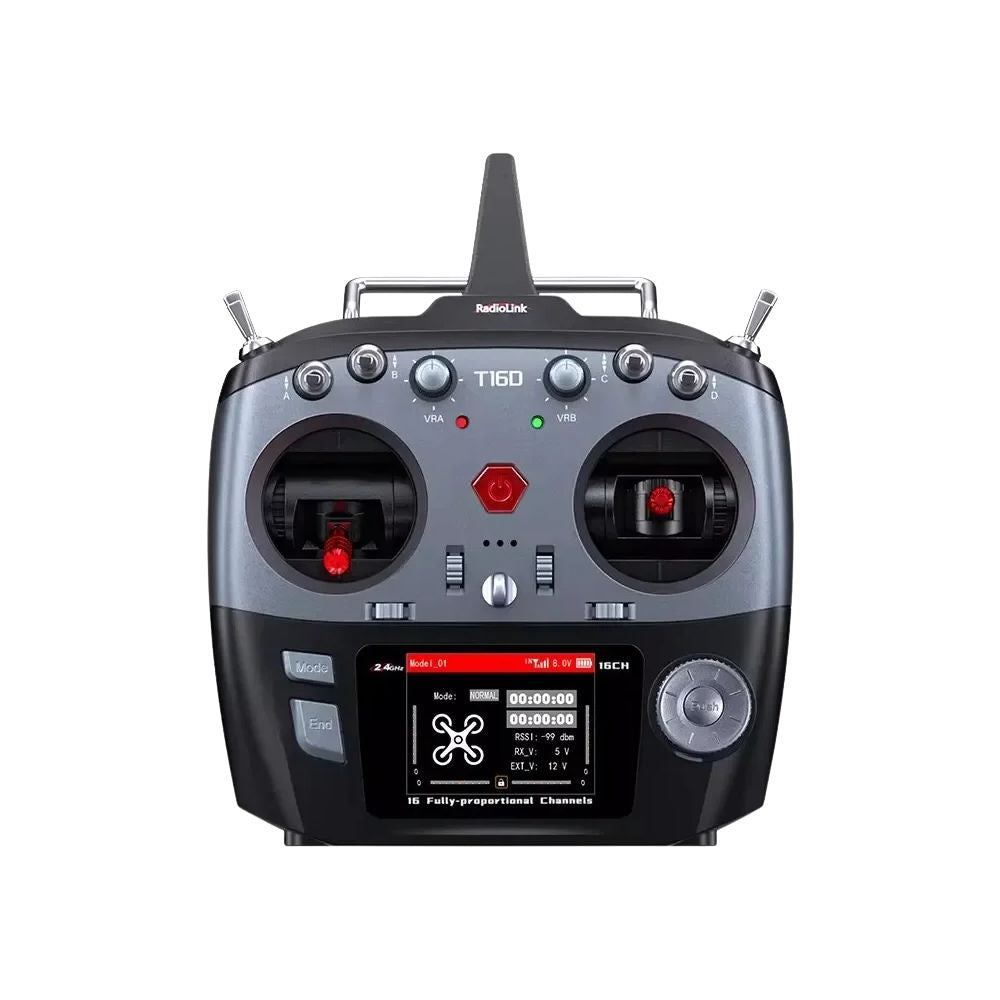

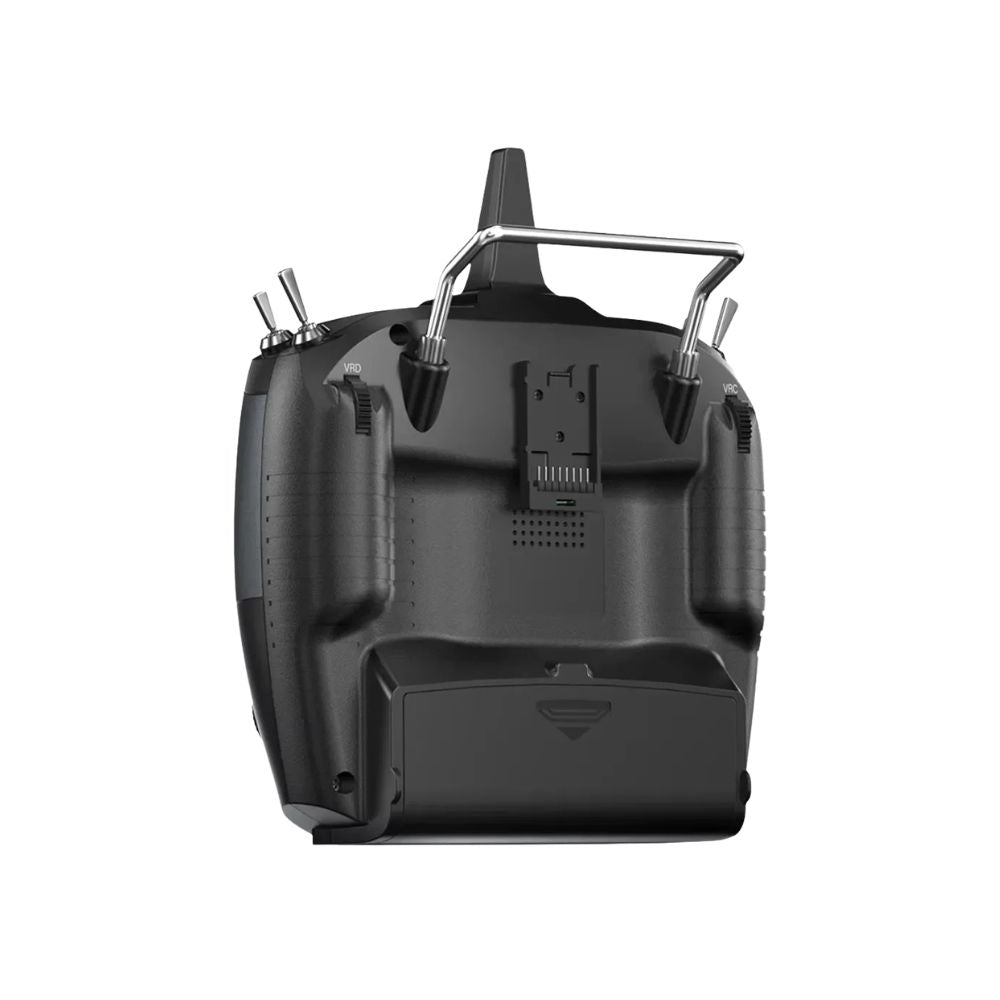

RadioLink T16D 16 Channels RC Transmitter

RadioLink T16D 16 Channels RC Transmitter 2.4GHz with R16F Receiver Dual Stick Remote Controller for RC Car Boat Lawnmowers Fixed Wing Helicopter Racing Drone

Features:

1. T16D, with 16 fully-proportional channels, Excellent Anti-interference Capability,4000 Meters Control Distance,Mainstream Operating System,Multiple Languages,Unique Personalized and Humanized Voice Broadcast Customization,Receiver Supports Upgrade Online,Humanized and Easy to Operat.

2. It fully supports ELRS, TBS Crossfire, and other mainstream long-range modules to realize FPV aircraft full parameters adjusted by the T16D.Realize the perfect combination of the humanized user interface of the remote control and the various functions of the open-source long-range modules.

3. Top Configuration: 1M bytes RAM Memory, 208MHz Basic Frequency Memory, 2.8 inches, 240 x 320 pixels 16 colorful screens, freeRTOS system plus LVGL GUI user interface realizes a colorful and responsive user interface.

4. Multiple Power Supply Modes,8 pieces of AA batteries, a 2S-4S LiPo or 18650 Lithium battery, or powered by a computer or mobile power bank connected via Type-C cable.

5. support helicopters,fixed-wings, gliders, multi-rotors, racing drones, football drones, engineering vehicles, racing boats,robots, lawnmowers, bait boats, mechas, and other models on the market.

Description:

T16D is packed with a 16-channel receiver R16FG,the 16 fully proportional channels,respond simultaneously in 3ms, providing accurate response without delay.With eight switches and four knobs, the user experience is uncompromised,Rich user-defined functions can satisfy almost all products from engineering vehicles, and robots, to turbojet aircraft.


Specifications:

T16D

Channels: 16 fully proportional channels, 5-16 channels can be programmed

Output Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping/CRSF

Operating Systems:  freeRTOS+LVGL GUI

Long-range Module Script: LUA script

Long-range Module: it fully supports ELRS, TBS Crossfire, and other mainstream long-range modules to realize FPV aircraft full parameters adjusted by the T16D

Voice Broadcast: unique personalized and humanized voice broadcast customization

Menu Customized: Setting Menu, font, desktop, system theme, etc,can be customized

Response Latency: 3ms, 4ms, 14ms can be selected

Channel Resolution: 4096 with regular jitter of 0.5us

Modulation Mode: GFSK

Channel Band Width: 400KHz

Channel Pacing: 1200KHz

Transmitter Power: <100mW(20dBM)

Adjacent Channel Rejection: >36dBM

Transmission Rate: 38kbps

Reception Sensitivity: -104dBM

PWM Output Range: 1.0ms~2.0ms

Cycle: 15ms/per frame

Operating Voltage: 7.4-18.0V(8pcs AA battery, a 2S-4S LiPo or 18650 Lithium battery)

Type-C Port Input Voltage: 5V(T16D also can powered by computer or mobile power bank via Type-C cable)

Type-C Port Input Current: 500mA

Type-C Port Output Voltage: 4.6V-5.0V

Type-C Port Output Current: Maximum 1A

Operating Current: 100mA(±10mA)@8.4VDC


Control Distance:

① FHSS: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)

② CRSF: Depends on the RX and TX of the long-range module

Adaptable Models:

Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot

Signal Output: PWM&SBUS&PPM

Low Voltage Alarm: Low transmitter voltage, low receiver voltage, low model battery voltage, or low RSSI alarm can be customized

Storage Model Quantity:  20

Storage Subsidiary ID Models Quantity: 15

Simulator Mode: Yes

Trainer Function: Support

Screen: 2.8 inches 16 colorful screens, 320*240 pixels

Compatible Receivers: R16FG(Std), R8EF,R8FM, R8SM, R8XM, R8FGH, R8FG, R7FG, R6FG, R6F, R4FGM, R4F

Operating Temperature: -30° to 85° C

Compatible Control Board Hardware Models: Ardupilot, pix4, beta, Arduino, and Raspberry Pi, can be connected with SBUS signal


R16F

Antenna Length: 205mm (8.07")

Channel: 16 channels

Operating Voltage: 3-12V

Operating Current: 50±10mA@5V

Signal Output: SBUS+PWM

Output Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)

Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping

Section Precision: 4096, 0.5us per section

Adaptable Models: Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot

Control Distance: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)

Telemetry: Real-time built-in telemetry of the model battery voltage, RSSI, and receiver voltage. R16F has built-in data transmission functions. When connected to the flight control, they can send back information such as latitude and longitude, distance, number of satellites, heading, and other information in real-time.

Upgrade Online: with a Type-C cable (for data transmission) connecting the R16F to the computer, the latest cutting-edge functions can be easily added without any extra device.

EXT Battery Input: 1S-8S(3.0-33.6V)

Gyro: Receiver with gyro-integrated, customizable gyro sensitivity

Response Latency:  3ms, 4ms, 14ms can be selected

Water Splash Proof: The waterproof grade is IPX4

Operating Temperature: -30° to 85° C

Compatible transmitter: T16D/T12D/T8FB/T8S/RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS


Package Included:

T16D Transmitter x 1

R16F Receiver x 1 (optional)

TF card (4G) x  1

Lanyard x 1

Type-C Cable(Upgrade) x 1

Hook and Spring x 1

Carrying Bag x 1
