UniVTOL V2200 Fixed-wing UAV
Please contact us before purchasing this drone. About this product UniVTOL V2200 is a powerful vertical take-off...
- $22,394.00
- $22,394.00
- Unit price
- per
Please hurry! Only 0 left in stock
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Free Returns
Learn More.
Description
xPlease contact us before purchasing this drone.
About this product

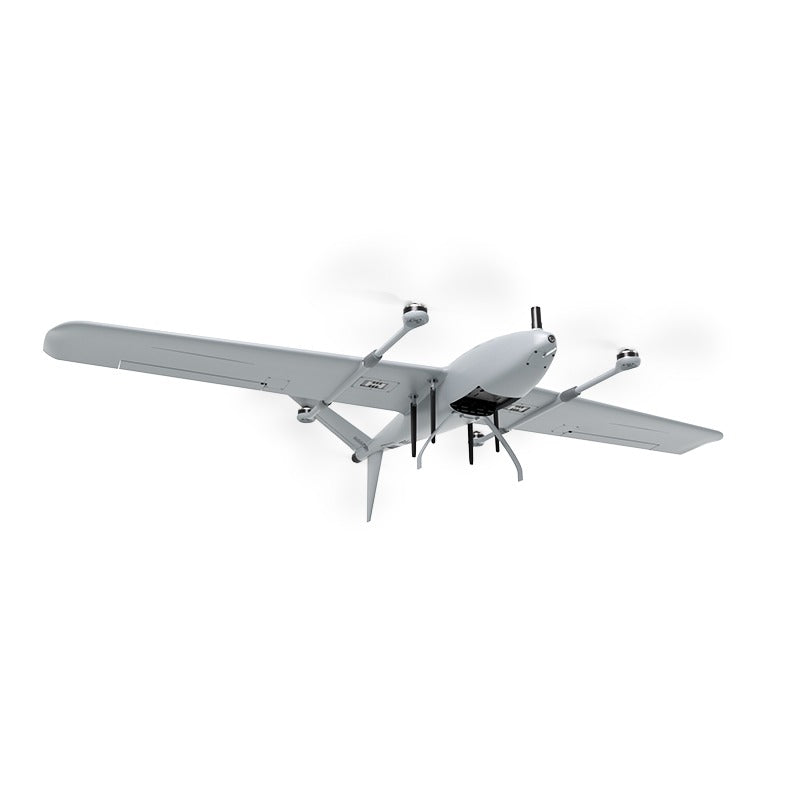

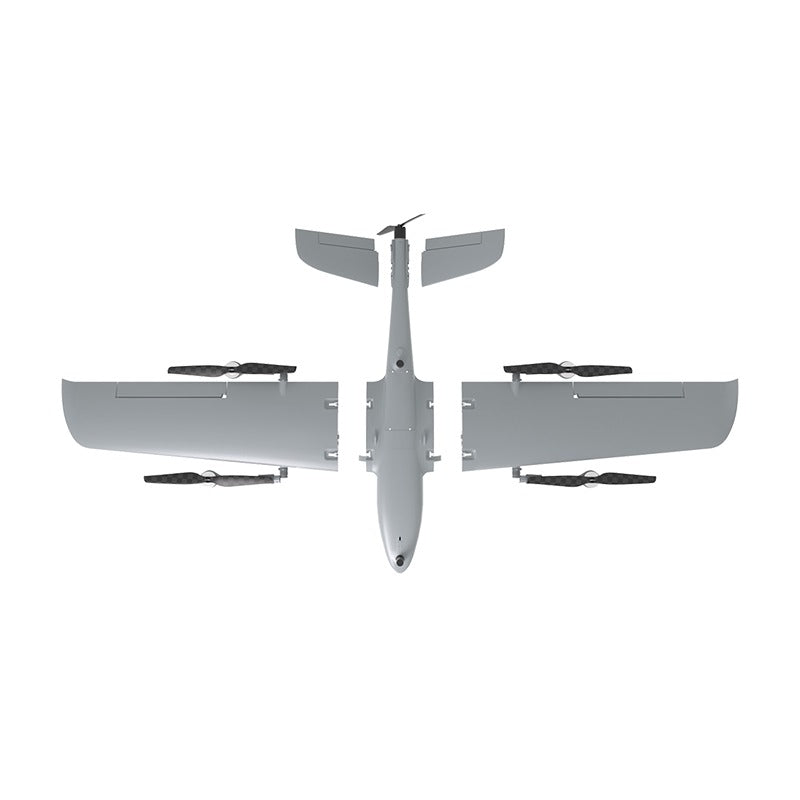

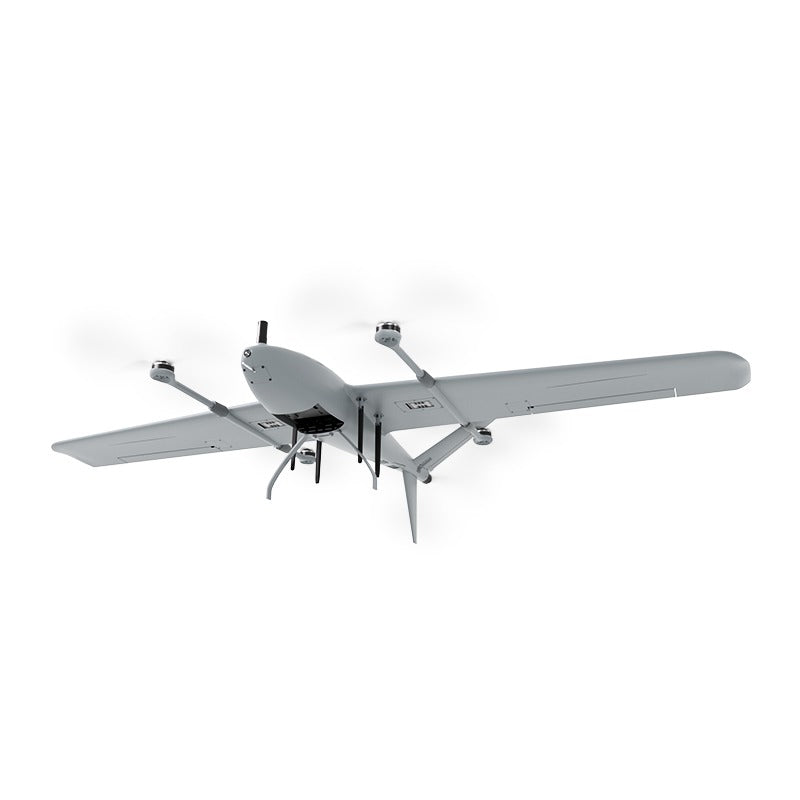

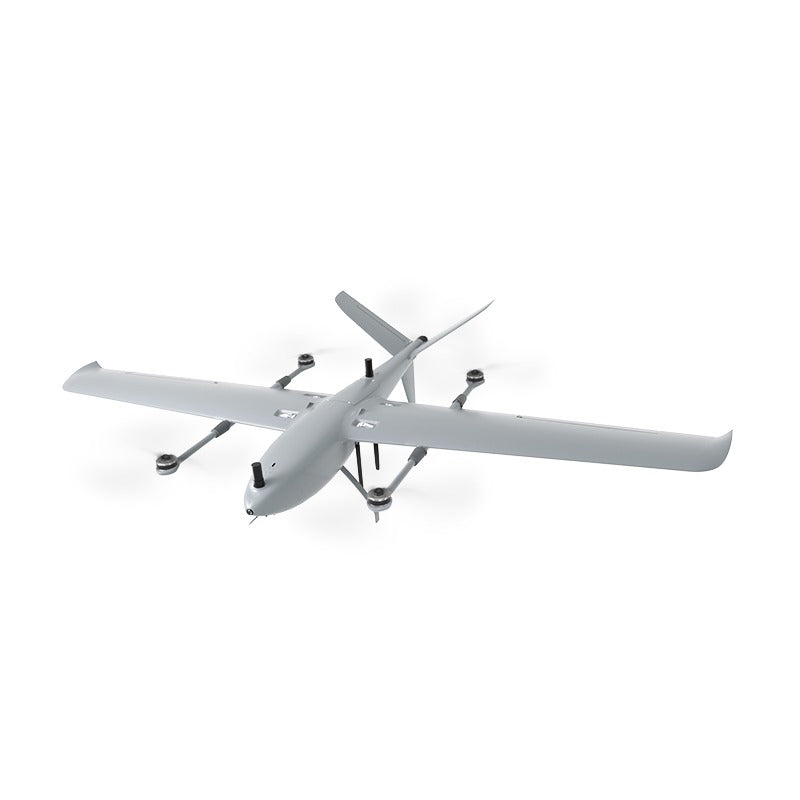

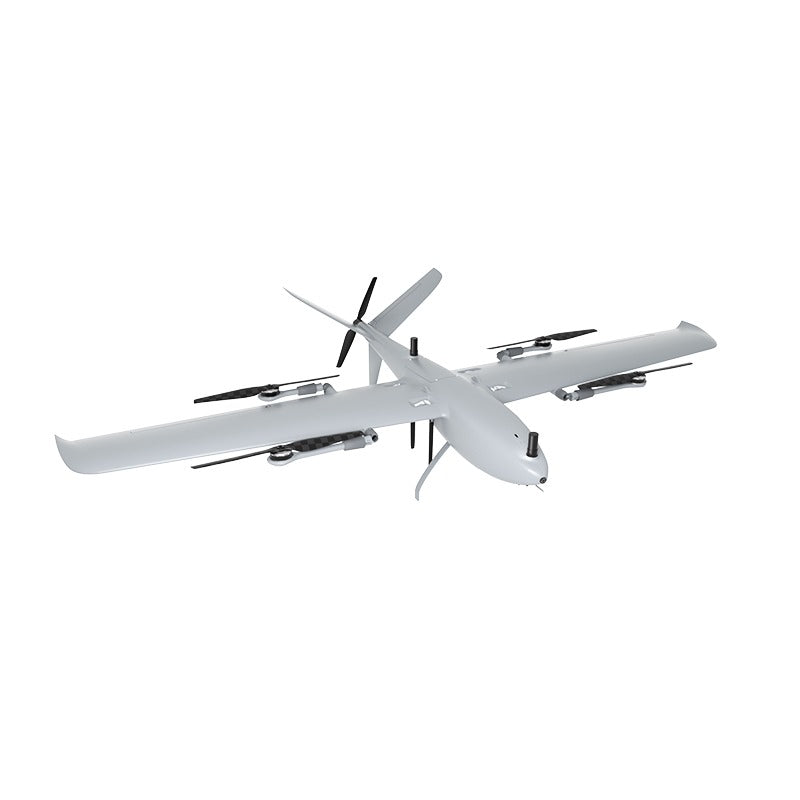

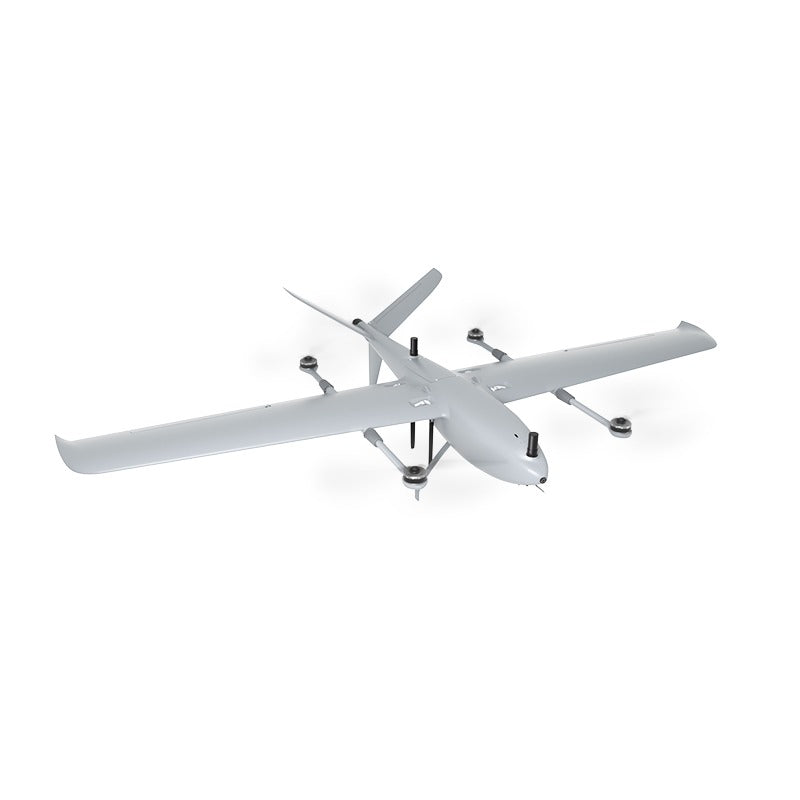

UniVTOL V2200 is a powerful vertical take-off and landing fixed-wing drone with a function of return to home in case of loss of control. It adopts a hybrid return mode (Q_RTL_MODE=2). After returning to the home point in fixed-wing mode at an altitude of 50 meters above the return point, it switches to QRTL mode and lands. It has reserved installation holes and outlet holes at the front lower part of the fuselage, and is equipped with a 12V power supply. It can carry functional modules such as a megaphone and a lighting lamp. Through the route planning function of the UniGCS ground station, you can set up taking photos or recording videos at the route nodes. In an unobstructed and micro-interference environment, the image transmission distance can reach 30-40 kilometers when the flight altitude is 120 meters. Its empty-load endurance time is 125 minutes, the endurance time is 114 minutes when the load is 1 kg, and the endurance time is 90 minutes when the load is ZT30 (the actual endurance time is affected by factors such as weather and wind speed). The maximum load of UniVTOL V2200 is 1 kg, the maximum take-off weight is 8.4 kg, and it is compatible with SIYI's full range of pod products.
Specs
Aircraft Specifications and Parameters
| Body Material |
Fiberglass, Carbon Fiber, Engineering Plastic, Aviation Aluminum Alloy, etc. |
| Quick Release Mechanism |
Screw-Free Quick Release |
| Dimensions (Unfolded, Including Propellers) |
2200 mm (Wingspan) × 1280 mm (Length) × 460 mm (Height) |
| Motor Diagonal Axis Distance |
1020（mm） |
| Packaging |
Aviation Aluminum Case |
| Packaging Dimensions |
1400 mm (Length) × 630 mm (Width) × 540 mm (Height) (Excluding Caster Height) |
Propulsion Parameters
| Multirotor Motor Model |
5008 400kv |
| Multirotor Propeller Size |
18x6.5 |
| Multirotor ESC Model |
2in1 60A |
| Fixed-Wing Motor Model |
3530/445kv |
| Fixed-Wing Propeller Model |
15x10 |
| Fixed-Wing ESC Model |
100A |
Flight Technical Parameters 1
| Empty Weight (Excluding Battery) |
5.1 kg |
| Weight with Battery (Unloaded) |
7.4 kg |
| Maximum Takeoff Weight |
8.4 kg |
| Maximum Effective Payload |
1 kg |
| Multirotor Maximum Ascend Speed |
2.5 m/s |
| Multirotor Maximum Descend Speed |
2.0 m/s |
| Multirotor Return-to-Home (RTH) Height |
50 m |
| Fixed-Wing Maximum Ascend Speed |
3 m/s |
| Fixed-Wing Maximum Descend Speed |
4 m/s |
| Fixed-Wing Circling Radius |
200 m |
| Fixed-Wing Return-to-Home (RTH) Height |
110 m |
| Maximum Flight Altitude |
3000 m |
| Service Ceiling |
3500 m |
| Stall Airspeed |
14 m/s |
| Transition Airspeed |
15 m/s |
| Cruise Airspeed |
18 m/s |
| Maximum Airspeed |
25 m/s |
| Image Transmission Range |
30-40 km (Unobstructed, Minimal Interference, 120 m Flight Altitude) |
| IP Protection Rating |
IP53 |
| Wind Resistance Level |
Multirotor: Level 4; Fixed-Wing: Level 5 |
Flight Technical Parameters 02
| Operating Voltage |
22-26.2 V |

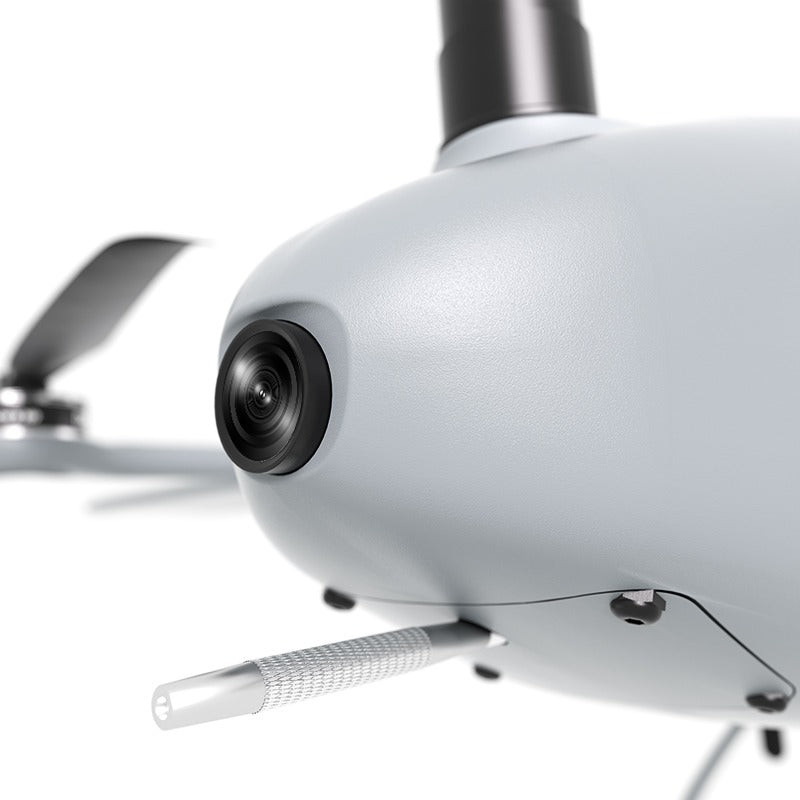

| FPV Camera Angle |
Vertical: 122°; Horizontal: 113° |
| FPV Camera Recording |
Supports 4K Card Recording |
| Battery Power Port |
Amass XT90H-M (Male) |
| Recommended Battery Model |
Tattu 6S 22000mAh LiHv |
| Support for Third-Party Autopilot |
Mainstream Industry Autopilots Supported |
Remote Controller & Image Transmission Parameters
| Display |
7-inch Touch LCD Screen, 1080P, 1600 nit |
| Weight |
1.46 kg |
| GNSS |
GPS/GLONASS/BeiDou/Galileo/QZSS |
| Built-in Battery Capacity |
13400 mAh |
| Endurance Time |
Approx. 8 hours |
| Protection Rating |
IP54 |
| Wi-Fi Protocol |
Wi-Fi 5 |
| Operating Frequency |
2.400 GHz - 2.476 GHz, 5.725 GHz - 5.829 GHz |
| Bluetooth (Android) Protocol |
BT 5.0 |
| Storage |
4GB + 64GB |
| Image Transmission Effective Range |
30-40 km (Unobstructed, Minimal Interference, Flight Altitude 120m and below. For reference only, actual performance may vary.) |
| Antennas |
2x Foldable Detachable Antennas + 2x Built-in Antennas |
| Physical Controls |
16 Buttons, 2 Large Joysticks, 1 Small Joystick, 2 Scroll Wheels, 2 Three-position Switches |
| Charging Time |
Approx. 4.5 hours |
| Charging Method |
Standard Quick Charge, Maximum Charging Power 30W |
Ground Station System
| Android System |
UniGCS (Standard) |
| Windows System |
UniGCS (Standard) |

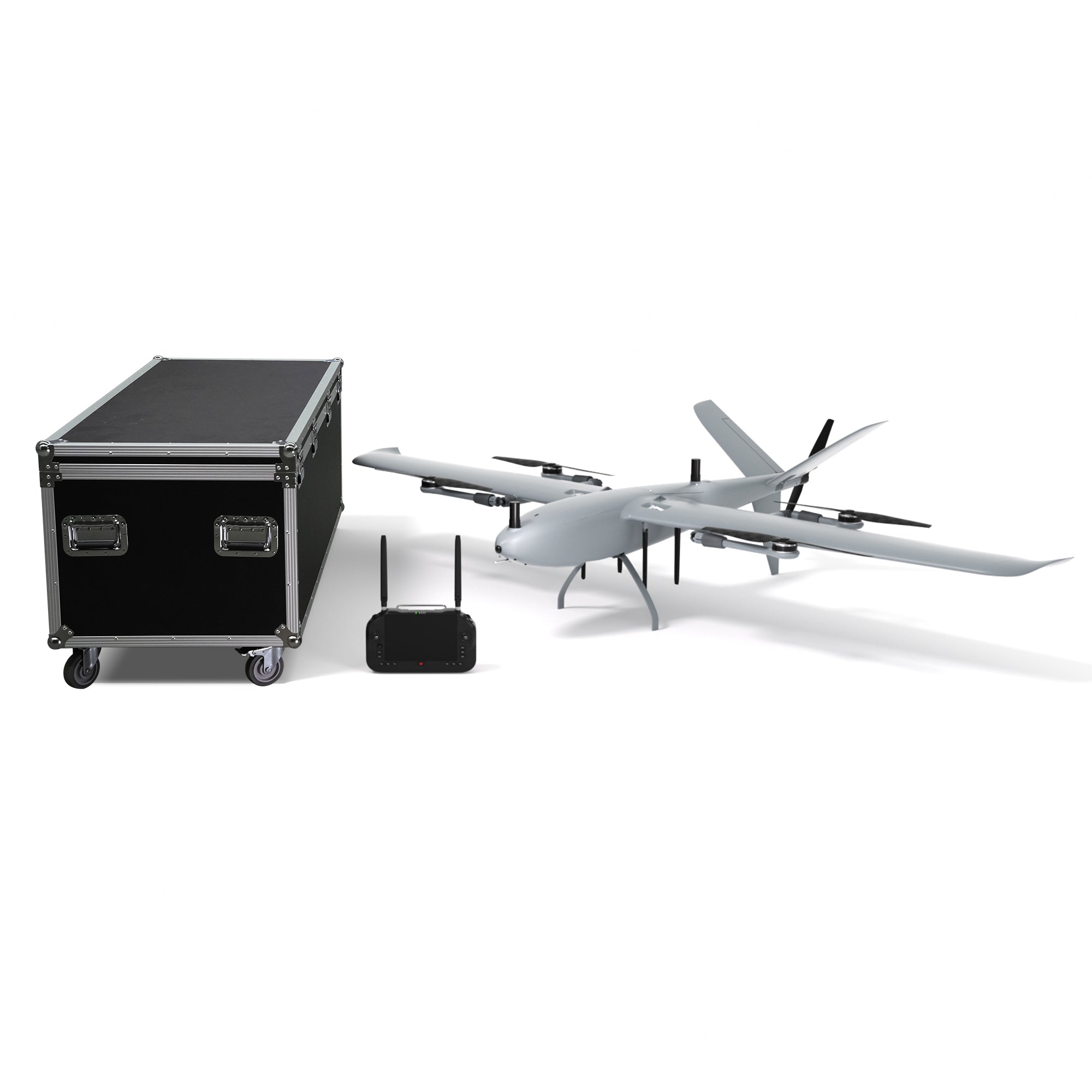

Includes
- UniVTOL V2200 Drone
- UniRC 7 Pro Handheld
- UniVTOL V2200 Flight Case
Remark:Excluding Battery
